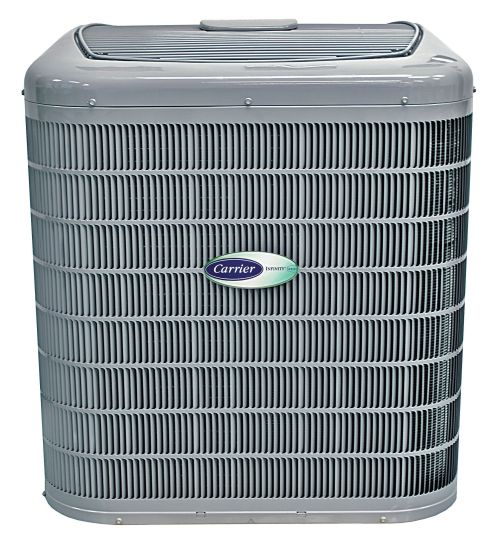

Carrier 3 Ton, 24 SEER, Heat Pump Condenser, Variable Speed, 208/1

Item
25VNA436A003
  • Energy Star Rated
  • California Prop 65

Infinity® Variable Speed Heat Pump With Greenspeed™ Intelligence 2 To 5 Nominal Tons

Carrier’s 25VNA4 with Greenspeed™ Intelligence is a breakthrough
product providing up to 13 HSPF heating efficiency and up to 24 SEER
cooling efficiency. The variable speed capacity control results in strong
heating capacity as the outdoor temperature drops resulting in less
reliance on auxiliary heat. Lower speed operation, when needed in
cooling, for enhanced comfort and dehumidification.

This product has been designed and manufactured to meet Energy Star®
criteria for energy efficiency when matched with appropriate coil
components. Refer to the combination ratings in this Product Data for
system combinations that meet Energy Star guidlines.

NOTE: Ratings contained in this document are subject to change at any
time. Always refer to the AHRI directory (www.ahridirectory.org) for
the most up-to-date ratings information.

Industry leading Features / Benefits

Energy Efficiency
• Up to 24 SEER, 15 EER, 13 HSPF
• Microtube Technology™ refrigeration system
• Indoor air quality accessories available
Sound
• Sound level as low as 51 dBA in low speed .

Comfort
• Variable speed compressor with capacity range from 25-100%
• Air cooled Inverter variable speed drive
– System requires Infinity Control with Greenspeed capability
– Energy Tracking capability with the Infinity Control Wall Control
w/latest software version
(Energy Tracking has the ability to monitor and estimate the energy
consumption of your Infinity system.)

Reliability
• Non-ozone depleting Puron® refrigerant
• Front-seating service valves
• Greenspeed Intelligence actively monitors critical system parameters
• High pressure switch
• Discharge pressure transducer
• Electronic expansion valve (EXV) for heating, TXV for cooling
• Filter drier (field installed)
• Internal crankcase heater standard

Flexibility and installation:
• 2 control wires to outdoor unit
• Minimum and maximum airflow adjustments
• Compressor heating capacity control
• Hybrid Heat™ Dual Fuel capable

Durability
• WeatherArmor Ultra™ protection package:
• Solid, Durable sheet metal construction
• Steel louver coil guard
• Baked-on, complete outer coverage, powder paint

Applications
• Long-line - up to 250 feet (76.2 m) total equivalent length, up to 200
feet (60.96 m) condenser above evaporator, or up to 80 ft. (24.38 m)
evaporator above condenser (See Longline Guide for more
information.)

Electrical
FLA 0.88
Hertz 60
MCA 18
MOCP 30
Phase 1
RLA 13.7
Voltage 208
Safety Standards
California Prop 65 Yes
Energy Star Rated Yes
Hazardous Material No
Specification
Low Pressure Switch No
Tonnage 3
Suction Line Size 7/8
Suction Line Fitting Sweat
Sound Level 54-71 dBA
Rows/FPI 2
Refrigerant R-410A
Metering Device TXV
Liquid Line Size 3/8
Liquid Line Fitting Sweat
Inverter Yes
High Pressure Switch Yes
COP 2.54
Cooling Stages Variable
Condenser Motor Type Propeller Type, Direct Drive
Condenser Motor HP 1/3
Condenser Air Flow Vertical
Compressor Type Variable Speed Rotary
Weights and Dimensions
Operating Weight (lbs) 218
Exterior Dimensions (D) (inches) 31.190000
Exterior Dimensions (W) (inches) 31.190000
Exterior Dimensions (H) (inches) 39.750000
Shipping Weight (lbs) 257.000000
General
Tier Infinity
