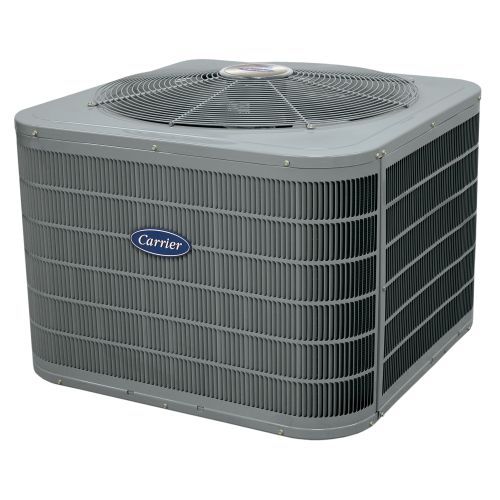

Carrier 4 Ton, 14-16 SEER2, Single Stage, Air Conditioner, 208/1

Item
24SPA649W003
  • Energy Star Rated
  • California Prop 65

Industry leading Features / Benefits

Efficiency

  • 13.8 - 16.0 SEER2 (14 - 16.5 SEER) /11.2 – 13.0 EER2 (11.2 - 13.0 EER)
  • Microtube Technology refrigeration system
  • Indoor air quality accessories available

Reliability

  • Puron refrigerant - environmentally sound, won’t deplete the ozone layer and low lifetime service cost.
  • Scroll compressor
  • Internal pressure relief valve
  • Internal thermal overload
  • Filter drier

Durability

WeatherArmor™ Ultra Protection Package:

  • Solid, Durable sheet metal construction
  • Steel louver coil guard
  • Baked-on, complete outer coverage, powder paint

Applications

  • Long–line – up to 250 feet (76.20 m) total equivalent length, up to 200

feet (60.96 m) condenser above evaporator, or up to 80 ft. (24.4 m) evaporator above condenser (See Long Line Guide for more information.)

  • Low ambient cooling (down to 0°F / -18°C ) with approved low ambient accessory kits.



This unit has been designed utilizing Carrier’s Puron refrigerant. The environmentally sound refrigerant allows you to make a responsible decision in the protection of the earth’s ozone layer.

NOTE: Ratings contained in this document are subject to change at any time.  Always refer to the AHRI directory (www.ahridirectory.org) for the most up-to-date ratings information.

Electrical
FLA 2.8
Hertz 60
LRA 120
MCA 25.9
MOCP 40
Phase 1
RLA 18.5
Voltage 208/230
Safety Standards
California Prop 65 Yes
Energy Star Rated Yes
Specification
Low Pressure Switch Yes
Tonnage 4
Suction Line Size 7/8
Suction Line Fitting Sweat
Stages 1
Sound Level 74
Rows/FPI 20
Rows 2
Refrigerant R-410A
Metering Device TXV
Max Piping Length 250 ft.
Compressor Sound Blanket No
Liquid Line Size 3/8
Liquid Line Fitting Sweat
Inverter No
High Pressure Switch Yes
Cooling Stages 1
Condenser RPM 800
Condenser Motor Type Direct Drive
Condenser Motor HP 1/3
Condenser Air Flow Vertical
Compressor Type Scroll
Weights and Dimensions
Operating Weight (lbs) 278
Exterior Dimensions (D) (inches) 35.000000
Exterior Dimensions (W) (inches) 35.000000
Exterior Dimensions (H) (inches) 45.687500
Shipping Weight (lbs) 302.000000
Warranty
Compressor Warranty 10 Year (When Registered in Residential Application)
Parts Warranty 10 Year (When Registered in Residential Application)
General
Tier Performance
