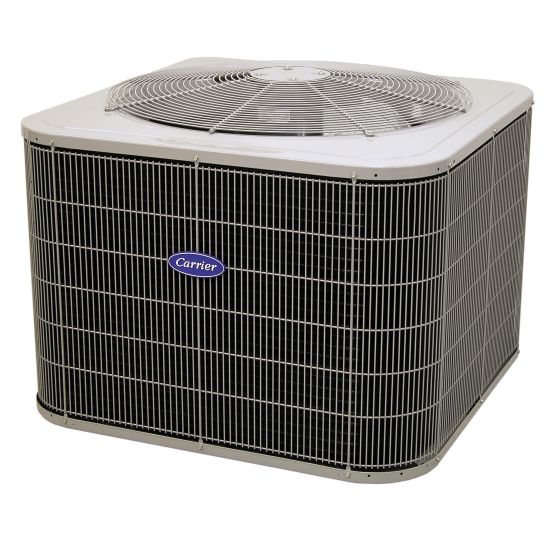

Carrier 4 Ton, 14 SEER Comfort Heat Pump Condenser, 460/3

Item
25HCE448AP06
  • California Prop 65

Carrier 25HCE4 Heat Pumps with Puron® refrigerant provide a collection of features unmatched by any other family of equipment. The 25HCE4 has been designed utilizing Carrier’s non-ozone depleting Puron® refrigerant.

NOTE: Ratings contained in this document are subject to change at any time. Always refer to the AHRI directory (www.ahridirectory.org) for the most up-to-date ratings information.



Industry Leading
Features / Benefits

Efficiency

• 14 SEER / 11.0 - 11.5 EER / 8.2 HSPF.
• Microtube Technology™ refrigeration system.
• Indoor air quality accessories available.

Sound

• Sound level as low as 69 dBA.
• Sound levels as low as 68 dBA with accessory sound blanket.

Comfort

• System supports programmable or standard thermostat controls.

Reliability

• Non-ozone depleting Puron® refrigerant.
• Scroll compressor.
• Internal pressure relief valve.
• Internal thermal overload.
• Loss of charge switch.
• Filter drier.
• Balanced refrigeration system for maximum reliability.

Durability

WeatherArmor™ protection package:
• Solid, durable sheet metal construction.
• Dense wire coil guard.
• Baked-on powder paint.

Applications

• Long-line - up to 250 feet (76.20 m) total equivalent length, up to 200 feet (60.96 m) condenser above evaporator, or up to 80ft. (24.38 m) evaporator above condenser (See Longline Guide for more information).
• Low ambient (down to -20°F/-28.9°C) with accessory kit.

Electrical
FLA 0.77
Hertz 60
LRA 60
MCA 8.3
MOCP 15
Phase 3
RLA 6
Voltage 460
Safety Standards
California Prop 65 Yes
Hazardous Material No
Specification
Low Pressure Switch Yes
Tonnage 4
Suction Line Size 7/8
Suction Line Fitting Sweat
Stages 1
Sound Level 79
SEER 14
Rows 2
Refrigerant R-410A
Metering Device TXV
Max Piping Length 250 ft.
Liquid Line Size 3/8
Liquid Line Fitting Sweat
Inverter No
High Pressure Switch No
COP 3.64
Cooling Stages 1
Condenser RPM 1100
Condenser Motor Type Direct Drive
Condenser Motor HP 1/4
Condenser Air Flow Vertical
Compressor Type Scroll
Weights and Dimensions
Operating Weight (lbs) 197
Exterior Dimensions (D) (inches) 31.190000
Exterior Dimensions (W) (inches) 31.190000
Exterior Dimensions (H) (inches) 28.440000
Shipping Weight (lbs) 232.000000
Warranty
Compressor Warranty 10 Year (When Registered in Residential Application)
Parts Warranty 10 Year (When Registered in Residential Application)
General
Tier Comfort
