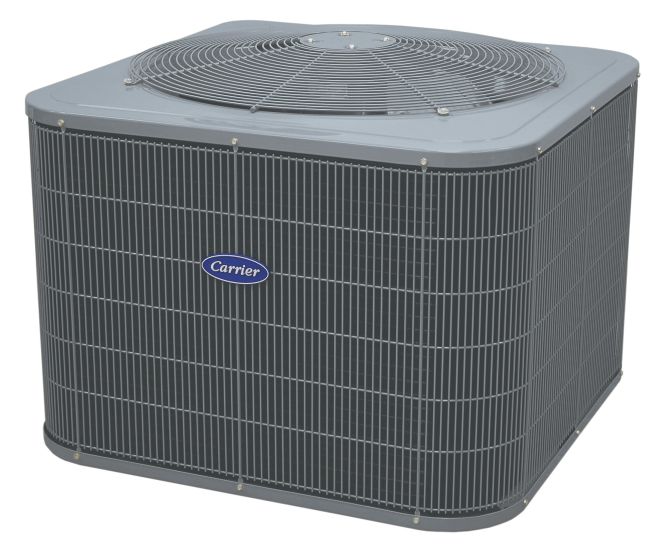

Carrier 5 Ton, 13 SEER, Air Conditioner Condenser, 208/3
Carrier’s 24ABB Air Conditioners with Puron® refrigerant provide a collection of features unmatched by any other family of
equipment. The 24ABB has been designed utilizing Carrier’s non-ozone depleting Puron refrigerant.
NOTE: Ratings contained in this document are subject to change at any time. Always refer to the AHRI directory (www.ahridirectory.org) for the most up-to-date ratings information.
INDUSTRY LEADING
FEATURES / BENEFITS
Efficiency
• 13 SEER/ up to 11 EER. (based on tested combinations)
• Microtube Technology™ refrigeration system.
• Indoor air quality accessories available.
Sound
• Sound level as low as 71 dBA.
Comfort
• System supports Edge® Thermidistat™ or standard thermostat controls.
Reliability
• Non-ozone depleting Puron® refrigerant.
• Scroll compressor.
• Internal pressure relief valve.
• Internal thermal overload.
• Filter drier.
• Balanced refrigeration system for maximum reliability.
Durability
WeatherArmort protection package:
• Solid, durable sheet metal construction.
• Dense wire coil guard.
• Baked-on, complete outer coverage, powder paint.
Applications
• Long-line - up to 250 feet (76.20 m) total equivalent length, up to 200 feet (60.96 m) condenser above evaporator, or up to 80ft. (24.38 m) evaporator above condenser (See Longline Guide for more information.)
• Low ambient (down to -10°F/-23°C) with accessory kit.
Electrical | |
---|---|
FLA | 1.4 | Hertz | 60 | LRA | 110 | MCA | 21.4 | MOCP | 30 | Phase | 3 | RLA | 16 | Voltage | 208/230 |
Safety Standards | |
---|---|
California Prop 65 | Yes | Shipping Point | 38017 |
Specification | |
---|---|
Low Pressure Switch | Yes | Tonnage | 5 | Suction Line Size | 1 1/8 | Suction Line Fitting | Sweat | Stages | 1 | Sound Level | 78 | SEER | 13 | Rows | 2 | Refrigerant | R-410A | Metering Device | TXV | Max Piping Length | 250 ft. | Compressor Sound Blanket | No | Liquid Line Size | 3/8 | Liquid Line Fitting | Sweat | Inverter | No | High Pressure Switch | Yes | Cooling Stages | 1 | Condenser RPM | 800 | Condenser Motor Type | PSC | Condenser Motor HP | 1/4 | Condenser Air Flow | Vertical | Compressor Type | Scroll |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 198 | Exterior Dimensions (D) (inches) | 31.190000 | Exterior Dimensions (W) (inches) | 31.190000 | Exterior Dimensions (H) (inches) | 28.940000 | Shipping Weight (lbs) | 230.000000 |
General | |
---|---|
Tier | Comfort |
