Carrier Comfort™ Multipoise Furnace, 95% AFUE, Single Stage, 18 Speed ECM, 115/1

Grouped product items
Product Name
Carrier Comfort™ Multipoise Furnace, 95% AFUE, Single Stage, 18 Speed ECM, 26,000 BTU, 115/1 MFR: Item: 59SC6A026M1410
Carrier Comfort™ Multipoise Furnace, 95% AFUE, Single Stage, 18 Speed ECM, 40,000 BTU, 115/1 MFR: Item: 59SC6A040M1410
Carrier Comfort™ Multipoise Furnace, 95% AFUE, Single Stage, 18 Speed ECM, 40,000 BTU, 115/1 MFR: Item: 59SC6A040M1712
Carrier Comfort™ Multipoise Furnace, 95% AFUE, Single Stage, 18 Speed ECM, 60,000 BTU, 115/1 MFR: Item: 59SC6A060M1412
Carrier Comfort™ Multipoise Furnace, 95% AFUE, Single Stage, 18 Speed ECM, 60,000 BTU, 115/1 MFR: Item: 59SC6A060M1716
Carrier Comfort™ Multipoise Furnace, 95% AFUE, Single Stage, 18 Speed ECM, 80,000 BTU, 115/1 MFR: Item: 59SC6A080M1716
Carrier Comfort™ Multipoise Furnace, 95% AFUE, Single Stage, 18 Speed ECM, 80,000 BTU, 115/1 MFR: Item: 59SC6A080M2120
Carrier Comfort™ Multipoise Furnace, 95% AFUE, Single Stage, 18 Speed ECM, 100,000 BTU, 115/1 MFR: Item: 59SC6A100M2120
Carrier Comfort™ Multipoise Furnace, 95% AFUE, Single Stage, 18 Speed ECM, 100,000 BTU, 115/1 MFR: Item: 59SC6A100M2122
Carrier Comfort™ Multipoise Furnace, 95% AFUE, Single Stage, 18 Speed ECM, 120,000 BTU, 115/1 MFR: Item: 59SC6A120M2422
Carrier Comfort™ Multipoise Furnace, 95% AFUE, Single Stage, 18 Speed ECM, 140,000 BTU, 115/1 MFR: Item: 59SC6A140M2422

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

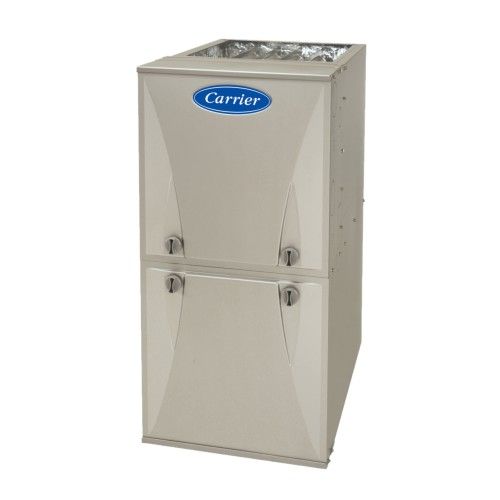

The 59SC6A Multipoise Comfort™ Condensing Gas Furnace features year-round electrical efficiency when paired with a compatible condensing unit. Energy efficiency is at the heart of this furnace with up
to 97.0% AFUE, gas efficiency and the electrically-efficient fixed-speeds, constant torque (MCT) ECM blower motor. Improved serviceability with the 3 digit status display and NFC enabled board allowing setup via the service tech app. This gas furnace also features 4-way multipoise installation flexibility, and is available in eleven model sizes. All sizes except the 26,000 BTUh model can be vented for direct vent/two-pipe, ventilated combustion air, or single-pipe applications. The 26,000 BTUh model can use the same 2-pipe venting system using outside air for combustion, but is not considered direct-vent. All sizes are design certified in Canada, and select sizes are certified for mobile/manufactured home use with conversion kit accessory.

PERFORMANCE
• Multi 18-speed, constant torque (MCT) ECM blower motor for electrically efficient operation all year long in heating, cooling and continuous fan operation.
• Enhanced diagnostics with easy to read 3-digit display for faults and status.
• Single-speed inducer motor, and single-stage gas valve.
• Silicon Nitride PowerHeat™ Hot Surface Igniter.
• Dual fuel capable HybridHeat™ with a compatible heat pump and thermostat for energy-saving heating performance
• Adjustable blower speed for heating and cooling.
• Aluminized-steel primary heat exchanger.
• Stainless-steel condensing secondary heat exchanger.

INSTALLATION FLEXIBILITY
• On-board NFC antenna makes setup a tap away when using the Carrier service technician app.
• 4-way multipoise design for upflow, downflow or horizontal installation, with unique vent elbow for optional venting through-the-cabinet downflow venting capability.
• Factory-configured ready for upflow applications.
• Ideal height 35” (889 mm) cabinet: short enough for taller coils, but still allows enough room for service.
• Two-pipe venting, single-pipe venting or ventilated combustion air.

APPLICATIONS
• Approved for Twinning applications with manufacturer’s approved accessory kit.
• Approved for Manufactured Housing/Mobile Home applications with MH accessory kit.
• Convertible to propane with gas conversion accessory kit.

CERTIFICATIONS
• All sizes meet ENERGY STAR® Version 4.1 criteria for gas furnaces: 95%+ AFUE.
• Cabinet air leakage less than 2.0% at 1.0 in. w.c. and cabinet air leakage less than 1.4% at 0.5 in. w.c. when tested in accordance with ASHRAE standard 193.
• All sizes can be installed in air quality management districts with a 40 ng/J NOx emissions requirements.

Resources

59SC6A-02PD.pdf
