Overhead Suspension Accessory
Item
CASUSPEN001A00
FEATURES
The overhead suspension accessory enables horizontal ceiling mounting of 6 to 10 ton packaged air-handling units. The kit contains 4 brackets to be installed with field-supplied steel channels, 3/8” thread hanger rod, and fasteners at 4 unit support points.
Field-Supplied Parts Required
2 14 gauge steel channel, 56" length4 3/8" threaded steel rod, required length
8 3/8" nuts
8 3/8" lock washers
8 3/8" flat washers

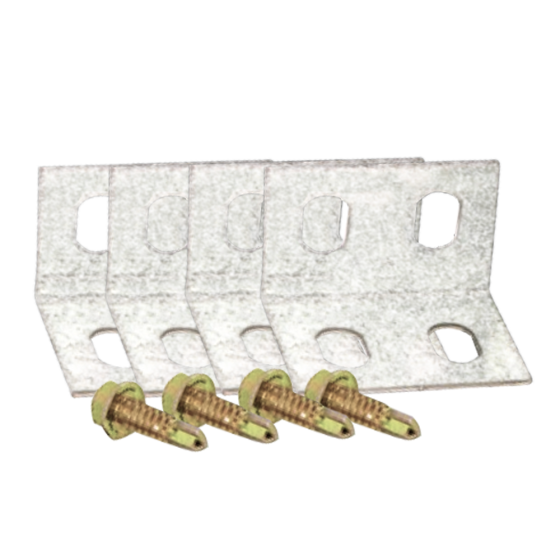

INCLUDES
• 4 Mounting Brackets• 4 1/4” Self-Drilling Screws
• Instructions
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 1.950000 | Exterior Dimensions (W) (inches) | 1.500000 | Exterior Dimensions (H) (inches) | 1.500000 | Shipping Weight (lbs) | 1.300000 |
