Ceiling Sensor

FEATURES

ClimaVision’s suite of sensor offerings gives building owners the power of IoT-connected devices for optimal efficiency and comfort in spaces where it matters most. This rings true even for wide open spaces or zones without room for a wall- mounted sensor.

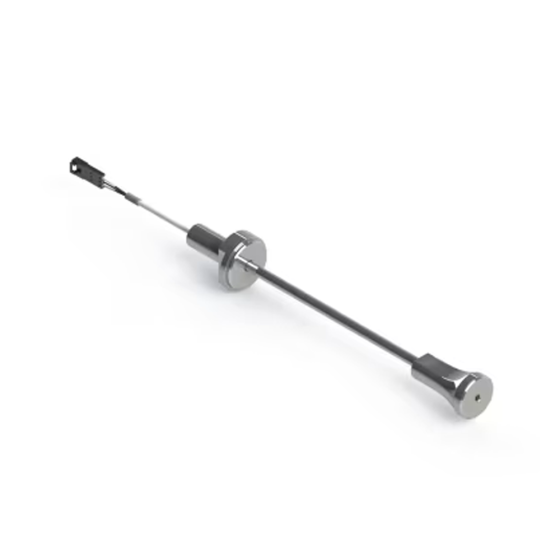

The Ceiling Sensor mounts easily to the ceiling with a threaded bush and is adjustable with a set screw, making temperature and humidity readings not only possible in airy spaces, but accurate, too.

The Ceiling Sensor offers high-precision measurement pre-calibrated from the factory for measuring comfort factors of temperature and humidity. The Ceiling Sensor is easily mounted on a ceiling by a threaded bush. The module drop from the ceiling can be adjusted via a set screw. The Ceiling Sensor uses a proprietary 1-wire protocol to communicate with other devices such as the Central Control Unit, Smart Node, or HyperStat.

• Accurate temperature readings (typical +/- 1˚F or 0.2˚C)
• Accurate humidity readings (typical +/- 2% RH)
• Easily mounted on ceiling via threaded bush
• Module drop can be easily adjusted
• Sleek design, low-impact aesthetics
• Can be daisy-chained with other sensors to provide extensible sensor network
• Communicates over a proprietary 3-wire sensor network with ClimaVision controllers like the Smart Node

COMPATIBLE APPLICATIONS
• VVT
• VAV
• Single-Stage Equipment Controls
• HyperStat Remote Sensing

SPECIFICATIONS

MECHANICAL
• Dimensions:
Body length: 1.89” (48mm)
Max body height: 1.10” (28mm)
Male bush length: 1.77” (45mm)
Male bush max height: 1.26” (32mm)
Included wire: 20’
Drop adjustments extender: 8”(203mm)

• Mounting: (1) threaded bush, requires 15mm hole in ceiling tile
• Operating Temp: 0˚F – 122˚F (-18˚C – 50˚C)
• Termination: 3 pin connector
• Accuracy: Humidity (typical +/- 2% RH), temperature (typical +/- 1˚F or 0.2˚C)

COMMUNICATIONS
• Wired: Proprietary 1-wire protocol to communicate with master devices

ELECTRICAL
• Power: 3.3V DC provided by Smart Node via 3 pin connectors
