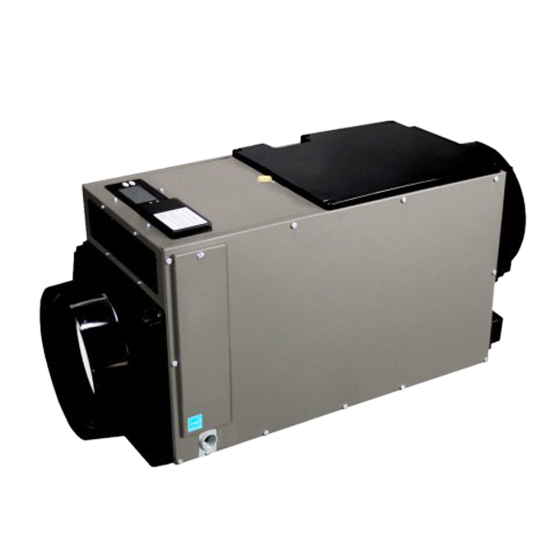

Whole-House Dehumidifier 80PPD, 135 CFM @ 0.2 W.C., 120Vac

FEATURES

The Dehumidifier controls the humidity level in the entire home. A powerful blower inside the dehumidifier draws air into the cabinet, filters the air and removes moisture, then discharges the dry air into the HVAC system or dedicated area of the home. Inside the cabinet, a sealed refrigeration system removes moisture by moving the air through a series of tubes and fins that are kept colder than the dew point of the incoming air. The dew point is the temperature at which moisture in the air will condense, much like what occurs on the outside of a cold glass on a hot summer day. The condensed moisture drips into the dehumidifier drain pan to a drain tube routed to the nearest floor drain or condensate pump. After the moisture is removed, the air moves through a second coil where it is reheated before being sent back into the home. The air leaving the dehumidifier will be warmer and drier than the air entering the dehumidifier.

Easy, Versatile Control
The on-board LCD control provides a user-friendly interface for setting desired dehumidification levels. For even greater convenience, the whole-home dehumidifier can be controlled with a relative humidity thermostat or from an available remote control.

Maintenance and Cleaning
Because routine filter cleaning ensures top performance, the dehumidifier control features a built-in “clean filter” reminder. A convenient access door on two sides of the cabinet allows for quick and easy removal and cleaning of the washable Merv 8 filter.

Quiet Comfort
The precision-tuned fan and motor quietly and efficiently pull air into the dehumidifier with sound levels comparable to most furnaces and fan coils.

Customized to your needs
Available in 80 or 100 Pint Per Day (PPD) sizes, this dehumidifier offers versatility to fit your comfort needs. It can be zoned to provide separate humidity control for two areas. It can also be installed as a standalone unit or in multiple ducting configurations and locations such as a closet, basement attic or crawlspace.

Protects Your Air and Furnishings
Excess humidity in the home can wreak havoc on indoor air quality and furnishings. By pulling moisture from the indoor air, the whole home dehumidifier not only enhances personal comfort, but also protects the furnishings and enhances the quality of the air that the occupants breathe every day

• Controls: Built-in Digital Control
• Cabinet Insulation: 1/2-in. EPS
• Air Discharge Orientation: Top or End
• Inlet/Outlet Duct Collars: 10-in. Diameter
• Backdraft damper at Outlet: Included
• Filter: 1/2-in. Washable, MERV 8
• Refrigerant: R-32
• Coil: Aluminum Tubing with Aluminum Fins, E-coated for Corrosion Resistance
• Power Cord: Plug Type, 8-foot, NEMA 5-15P
• Hard-wire Option: Yes, field configurable
• Discharge Air Temperature Rise: 10°F - 30°F
• Drain connection: 3/4-in. FNPT
• Fault Indicator: Yes (with self-diagnostics)
• Warranty: 5 year parts from date of installation to original purchaser
• Energy Star Qualified: Yes, Most Efficient

SPECIFICATIONS

• Capacity, PPD @ 0.2 w.c.: 80 @ 80°F/60% RH, 64 @ 73°F/60% RH
• Energy Factor, L/kW-h: 2.8 @ 80°F/60% RH, 2.3 @ 73°F/60% RH

• Airflow @ varying E.S.P. (External Static Pressure - dry coil)
0.0 In. W.C.: 185 CFM
0.2 In. W.C.: 135 CFM
0.4 In. W.C.: 85 CFM
0.6 In. W.C.: N/A

• Voltage, Phase, Frequency: 120V, 1, 60 Hz
• Current Draw, min, Amps: 5.2
• Noise, dBA: 45 ducted, 49 unducted
• Capillary Tubes Diameter: 0.036” ID
• Dimensions, in. (cabinet, without collars): 14W x 15H x 26L
• Packaged Dimensions, in.: 19.5W x 20.5H x 32L
• Operating Weight, lb.: 69
• Shipping Weight, lb.: 81
• Inlet Air Operating Conditions: 50°F - 104°F, 40°F dew point min.
• Ambient / Ventilation: Integrated Vent Control 40°F - 140°F, 0% - 99% RH (non-condensing)

• Compressor
• Manufacturer: GMCC
• Model: KSN66E11VERC1
• Refrigeration Capacity, Btu/h: 8200
• Power Consumption [W]: 585
• R32 Charge, oz.: 8.7
