Comfort™ 92% AFUE Condensing Gas Furnace, Single Stage, 18 Speed ECM

Grouped product items
Product Name
Carrier Comfort™ Multipoise Furnace, 92% AFUE, 40,000 BTU, Single Stage, 18 Speed ECM, 115/1 MFR: Item: 59SC2E040M1412
Carrier Comfort™ Multipoise Furnace, 92% AFUE, 40,000 BTU, Single Stage, 18 Speed ECM, 115/1 MFR: Item: 59SC2E040M1712
Carrier Comfort™ Multipoise Furnace, 92% AFUE, 60,000 BTU, Single Stage, 18 Speed ECM, 115/1 MFR: Item: 59SC2E060M1412
Carrier Comfort™ Multipoise Furnace, 92% AFUE, 60,000 BTU, Single Stage, 18 Speed ECM, 115/1 MFR: Item: 59SC2E060M1714
Carrier Comfort™ Multipoise Furnace, 92% AFUE, 80,000 BTU, Single Stage, 18 Speed ECM, 115/1 MFR: Item: 59SC2E080M1716
Carrier Comfort™ Multipoise Furnace, 92% AFUE, 80,000 BTU, Single Stage, 18 Speed ECM, 115/1 MFR: Item: 59SC2E080M2120
Carrier Comfort™ Multipoise Furnace, 92% AFUE, 100,000 BTU, Single Stage, 18 Speed ECM, 115/1 MFR: Item: 59SC2E100M2120
Carrier Comfort™ Multipoise Furnace, 92% AFUE, 100,000 BTU, Single Stage, 18 Speed ECM, 115/1 MFR: Item: 59SC2E100M2122
Carrier Comfort™ Multipoise Furnace, 92% AFUE, 120,000 BTU, Single Stage, 18 Speed ECM, 115/1 MFR: Item: 59SC2E120M2420

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

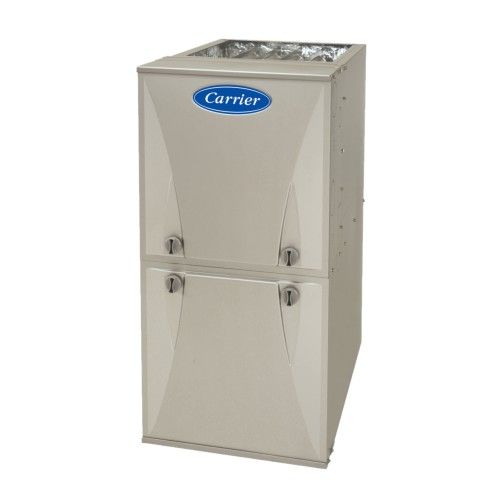

The Comfort™ 92 condensing gas furnace delivers on energy efficiency, achieving 92.1% AFUE. The ECM blower motor is electrically efficient and additional speed options enhance comfort. It can deliver the warmth and is designed to save you money.

The 59SC2E Multipoise Comfort™ 92 Condensing Gas Furnace features SEER-boosting year-round electrical efficiency when paired with a compatible condensing unit. Energy efficiency is at the heart of this furnace with up to 92.1% AFUE gas efficiency and the electrically-efficient fixed-speeds, constant torque (MCT) ECM blower motor. Improved serviceability with the 3 digit status display and NFC enabled board allowing setup via the service tech app. This gas furnace also features 4-way multipoise installation flexibility, and is available in nine model sizes. The 59SC2E can be vented for direct vent/two-pipe, ventilated combustion air, or single-pipe applications. Units are design certified in Canada, and are certified for mobile/manufactured home use.

PERFORMANCE
• Multi 18-speed, constant torque (MCT) ECM blower motor for electrically efficient operation all year long in heating, cooling and continuous fan operation.
• Single-speed inducer motor, and single-stage gas valve.
• Silicon Nitride PowerHeat™ Robust Hot Surface Igniter.
• Adjustable blower speed for heating and cooling.
• Enhanced diagnostics with easy to read 3 digit display for faults and status
• Aluminized-steel primary heat exchanger.
• Stainless-steel condensing secondary heat exchanger.
INSTALLATION FLEXIBILITY
• 4-way multipoise design for upflow, downflow or horizontal installation, with unique vent elbow for 12 different venting options, including optional venting through-the-cabinet downflow venting capability.
• On-board NFC antenna makes setup a tap away when using the Carrier service technician app
• Factory-configured ready for upflow applications.
• Ideal height 35” (889 mm) cabinet: short enough for taller coils, but still allows enough room for service.
• Direct-vent/sealed combustion, single-pipe venting or ventilated combustion air.
APPLICATIONS
• Approved for Twinning applications with accessory kit (060M17--14, 080M17--16, 080M21--20, 100M21--20, 120M24--20 models, only).
• Approved for Manufactured Housing/Mobile Home applications with MH accessory kit.
• Convertible to propane with gas conversion accessory kit.
CERTIFICATIONS
• All sizes meet ENERGY STAR® South regional standards.
• Cabinet air leakage less than 2.0% at 1.0 in. w.c. and cabinet air leakage less than 1.4% at 0.5 in. w.c. when tested in accordance with ASHRAE standard 193.
• All sizes can be installed in California air quality management districts with a 40 ng/J NOx emissions limit

Resources

59SC2E-01PD.pdf

59SC2E-01SI.pdf
