Condensate Freeze Protection Kit
Item
KGAHT0201CFP
FEATURES
This instruction covers the installation of condensate freeze protection kit, Part No. KGAHT0201CFP for use with 35-in. (889 mm) tall high-efficiency condensing gas furnaces.
The condensate freeze protection (condensate trap with heat pad) kit is designed to protect a high-efficiency furnace condensate drain trap from freezing when the furnace is installed in an area where temperatures may be below 32 °F (0 °C).

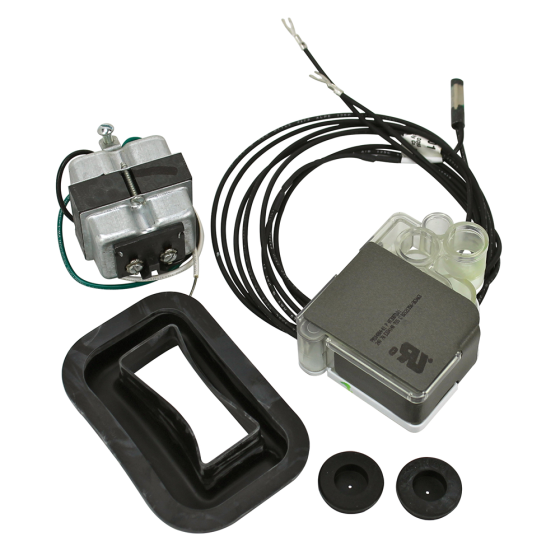

INCLUDES
• 1 Condensate Trap with Heat Pad• 1 120V to 24V Step-down Transformer
• 2 KA56GR140 7/8” Grommets
• 1 Trap Grommet
• 1 Installation Instructions
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 2 | Exterior Dimensions (D) (inches) | 10.000000 | Exterior Dimensions (W) (inches) | 10.000000 | Exterior Dimensions (H) (inches) | 4.000000 | Shipping Weight (lbs) | 2.000000 |
