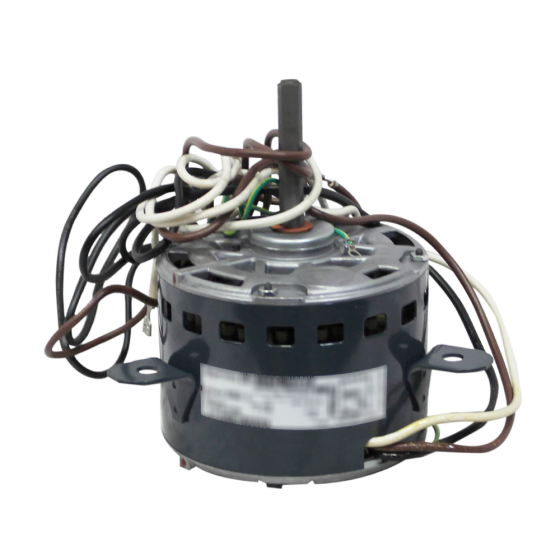

Condenser Fan Motor 1/2HP, 1075RPM, 460Vac, 1.90A, 7.5µF/370Vac, 1 Speed, (PSC)
Item
HC43VL460
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/2
• RPM: 1075
• Number of Speeds: 1
• Rotation: Counter-Clockwise
• Voltage: 460Vac
• Amperage: 1.90
• Capacitor: 7.5µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Sleeve
• NEMA Frame Size: 48
• Totally Enclosed, Air Over (TEAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Shaft Size: 0.50 x 2.50
| Specification | |
|---|---|
| Bearing Type | Sleeve | Motor Frame | 48 | Motor HP | 1/2 | Motor Type | PSC | Number of Speeds | 1 | Rotation | CCW | RPM | 1075 | Shaft Diameter | 0.50 | Shaft Length | 2.50 |
| Electrical | |
|---|---|
| Amps | 1.9 | Hertz | 60 | Voltage | 460 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 11.95 | Exterior Dimensions (D) (inches) | 8.350000 | Exterior Dimensions (W) (inches) | 8.350000 | Exterior Dimensions (H) (inches) | 7.900000 | Shipping Weight (lbs) | 14.250000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico |
