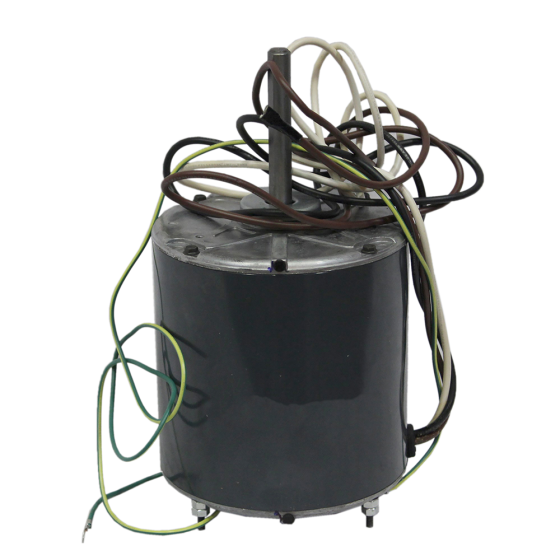

Condenser Fan Motor 1/3HP, 825RPM, 208/230Vac, 2.60A, 10µF/370Vac, 1 Speed, (PSC)
Item
HC43GE208
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/3
• RPM: 825
• Number of Speeds: 1
• Rotation: Counter-Clockwise
• Voltage: 208/230Vac
• Amperage: 2.60
• Capacitor: 10µF/370Vac
• 1 Phase
• Hz: 60
• Totally Enclosed, Air Over (TEAO) Enclosure
• Continuous Duty
• Insulation Class: B
SUPERSEDES FROM
• HC42GL230
| Specification | |
|---|---|
| Motor HP | 1/3 | Motor Type | PSC | Number of Speeds | 1 | Rotation | CCW | RPM | 825 |
| Electrical | |
|---|---|
| Amps | 2.6 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 16.8 | Exterior Dimensions (D) (inches) | 5.700000 | Exterior Dimensions (W) (inches) | 5.700000 | Exterior Dimensions (H) (inches) | 10.600000 | Shipping Weight (lbs) | 17.700000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico |
