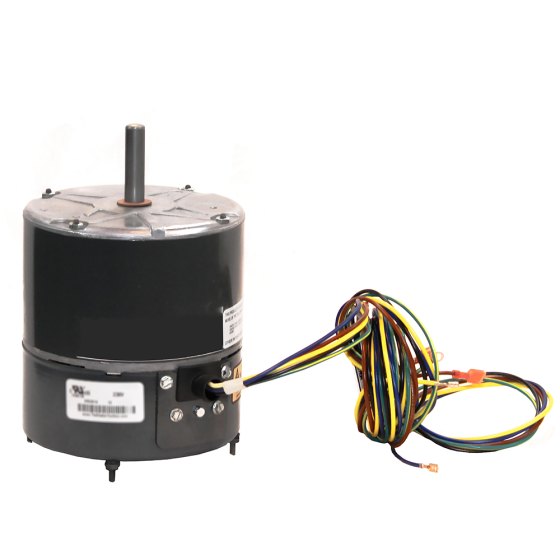

Condenser Fan Motor 1/5HP, 850RPM, 208/230Vac, 0.50A, (ECM)
Item
HC38GR239
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Electronically Commutated Motor (ECM)
• Horsepower: 1/5
• RPM: 850
• Rotation: Clockwise
• Voltage: 208/230Vac
• Amperage: 0.50
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 39
• Totally Enclosed, Air Over (TEAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Shaft Size: 0.50 x 2.00
SUPERSEDES FROM
• HC38GR235
• HC38GE233
• HC38GE221
• HC38GE220
• HC38GE234
• HC38GE235
• HC38GE238
• HC38GE237
Specification | |
---|---|
Bearing Type | Ball | Motor Frame | 39 | Motor HP | 1/5 | Motor Type | ECM | Rotation | CW | RPM | 850 | Shaft Diameter | 0.50 | Shaft Length | 2.00 |
Electrical | |
---|---|
Amps | 0.5 | Hertz | 60 | Voltage | 208/230 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 11.1 | Exterior Dimensions (D) (inches) | 5.500000 | Exterior Dimensions (W) (inches) | 5.700000 | Exterior Dimensions (H) (inches) | 8.000000 | Shipping Weight (lbs) | 12.050000 |
Warranty | |
---|---|
Country of Origin | Mexico |
