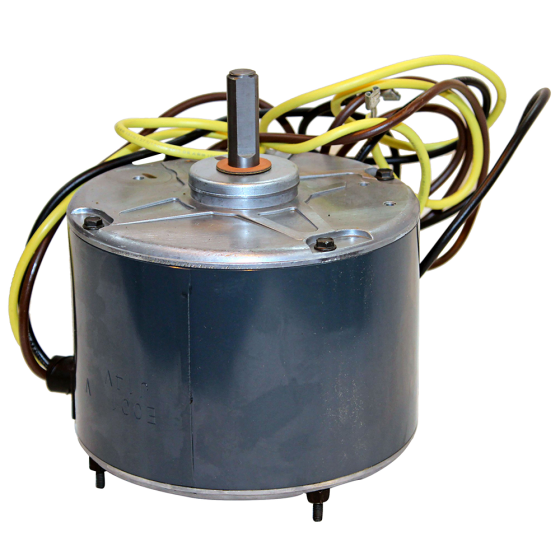

Condenser Fan Motor 1/8HP, 825RPM, 208/230Vac, 0.90A, 5µF/370Vac, 1 Speed, (PSC)
Item
HC35GE234
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/8
• RPM: 825
• Number of Speeds: 1
• Rotation: Clockwise
• Voltage: 208/230Vac
• Amperage: 0.90
• Capacitor: 5µF/370Vac
• 1 Phase
• Hz: 60
• Totally Enclosed, Air Over (TEAO) Enclosure
• Continuous Duty
• Insulation Class: B
SUPERSEDES FROM
• HC35GE210
• HC35GE232
• HC35GE230
| Specification | |
|---|---|
| Motor HP | 1/8 | Motor Type | PSC | Number of Speeds | 1 | Rotation | CW | RPM | 825 |
| Electrical | |
|---|---|
| Amps | 0.9 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 8.9067 | Exterior Dimensions (D) (inches) | 5.500000 | Exterior Dimensions (W) (inches) | 5.500000 | Exterior Dimensions (H) (inches) | 6.100000 | Shipping Weight (lbs) | 9.964900 |
| Warranty | |
|---|---|
| Country of Origin | Mexico |
