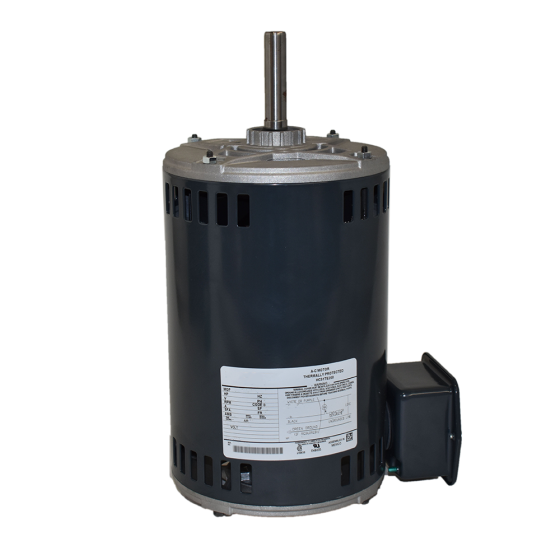

Condenser Fan Motor 1HP, 1075RPM, 208/230Vac, 7.7A, 25µF/370Vac, 1 Speed, (PSC)
Item
HC51TE200
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1
• RPM: 1075
• Number of Speeds: 1
• Voltage: 208/230Vac
• Amperage: 7.7
• Capacitor: 25µF/370Vac
• 1 Phase
• Hz: 60
• NEMA Frame Size: 56
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
SUPERSEDES FROM
• HC51TE230
• P251-5103
| Specification | |
|---|---|
| Motor Frame | 56 | Motor HP | 1 | Motor Type | PSC | Number of Speeds | 1 | RPM | 1075 |
| Electrical | |
|---|---|
| Amps | 7.7 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 32.7 | Exterior Dimensions (D) (inches) | 19.000000 | Exterior Dimensions (W) (inches) | 11.000000 | Exterior Dimensions (H) (inches) | 7.800000 | Shipping Weight (lbs) | 34.200000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico |
