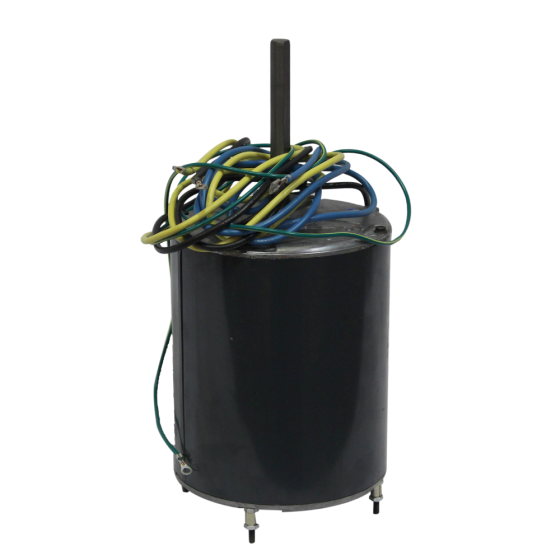

Condenser Fan Motor 1HP, 1115RPM, 460Vac, 1.70A
Item
HD46GK460
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Horsepower: 1
• RPM: 1115
• Rotation: Counter-Clockwise
• Voltage: 460Vac
• Amperage: 1.70
• 3 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 48
• Totally Enclosed, Air Over (TEAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Shaft Size: 0.50 x 4.00
| Specification | |
|---|---|
| Bearing Type | Ball | Motor Frame | 48 | Motor HP | 1 | Rotation | CCW | RPM | 1115 | Shaft Diameter | 0.50 |
| Electrical | |
|---|---|
| Amps | 1.7 | Hertz | 60 | Voltage | 460 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 22.55 | Exterior Dimensions (D) (inches) | 5.900000 | Exterior Dimensions (W) (inches) | 5.900000 | Exterior Dimensions (H) (inches) | 12.600000 | Shipping Weight (lbs) | 23.500000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico |
