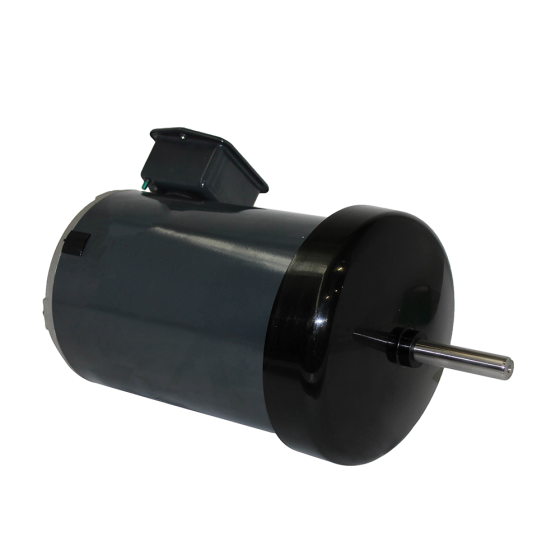

Condenser Fan Motor 1140RPM, 208/230/460Vac, 5.0/3.0A
Item
HD52VE214
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• RPM: 1140
• Rotation: Reversible
• Voltage: 208/230/460Vac
• Amperage: 5.0/3.0
• 3 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 56Z
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Shaft Size: 0.625 x 3.56
SUPERSEDES FROM
• HD52VE204
• HD52VE212
• HD52VF204
• HD52VE200
• HD52VL851
• HD52VZ204
| Specification | |
|---|---|
| Bearing Type | Ball | Motor Frame | 56Z | RPM | 1140 | Shaft Diameter | 0.625 | Shaft Length | 3.56 |
| Electrical | |
|---|---|
| Amps | 3 | Hertz | 60 | Voltage | 208/230/460 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 34.15 | Exterior Dimensions (D) (inches) | 16.800000 | Exterior Dimensions (W) (inches) | 10.500000 | Exterior Dimensions (H) (inches) | 7.700000 | Shipping Weight (lbs) | 35.650000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico |
