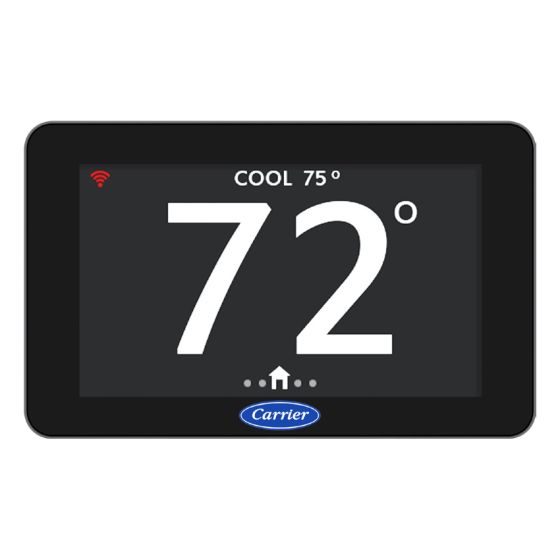

Connect™ BACnet Wi-Fi Thermostat 4H/3C
Item
33CONNECTSTAT43
Hardware Features
- Color Capacitive Touchscreen: 4.3” vibrant full-color LCD swipe and scroll screen that’s easy to navigate and view from any angle
- BACnet: MS/TP port for easy integration with i-Vu system or any BACnet-compliant BMS
- Sensors: Onboard Temperature and Humidity
- Direct Wi-Fi® Access: Easily connect to your building’s network
- Slim Profile: Blends easily into any building’s decor and environmental surroundings
Application & System Features
- Display: Celsius or Fahrenheit
- Applications: Supports up to 4 heating and 3 cooling stages with various new or existing HVAC equipment with 24 VAC control
- 7-Day Scheduling: Precisely adjust optimum comfort setpoints to achieve energy savings
- Demand Response Ready: For participation in local demand response programs
- Over-the-Air Software Updates: Directly sent over Wi-Fi network without having to manually check for updates
- Control: Make basic temperature, comfort and efficiency adjustments easily and quickly
- Alerts: Notification through SMS text and eMail of any critical issues
- Embedded Contractor Info: Lets you know who to contact for service Local Access Security: Provides selective access for authorized individuals
- Smartphone App and Web Portal: Configure using your internet-connected Smartphone, PC or Tablet from anywhere or anytime… in real time
| Power Requirements | R,C 24 Vac 50/60 Hz @ 6VA |
| Communication | A+, B BACnet: MS/TP with baud rates up to 76.8 kbps, detected and set automatically. Max 127 devices. Wi-Fi®: 802.11 a/b/g/n |
| Real-Time Clock | Real-time clock keeps track of time in the event of a power failure for up to 7 days. |
| Display | Color Capacitive Backlit Touchscreen, °F or °C Selectable |
| Input | S1-S2 Remote Temperature Sensor 10K Type II. Software selectable for: Remote Temperature (33ZCT55SPT) Outside Air Temperature (33ZCSENOAT) Duct Temperature (33ZCSENSAT) |
| Outputs: | G,W1,W2,Y1,Y2,Y3,O Minimum Load = 1000 ohms Maximum Load = 1.25 A, 50% power factor |
| Environmental Operating Range | 32° to 104°F (0° to 40°C), 10 to 95% relative humidity, non-condensing |
| Compliance | FCC Part 15, Subpart J compliant, Title 24 compliant, IECC 2015 compliant |
| Physical | Dimensions: (H x W x D): 3.23 in. (82mm) x 5.13 in. (130mm) x .94 in. (24mm) Weight: approximately .75 lb (340g) Lead-free design |
| Electrical | |
|---|---|
| Hertz | 60 |
| Specification | |
|---|---|
| System Switching | Yes | Programmable | Yes |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes | Hazardous Material | No |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 5.000000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 2.000000 | Shipping Weight (lbs) | 1.000000 |
