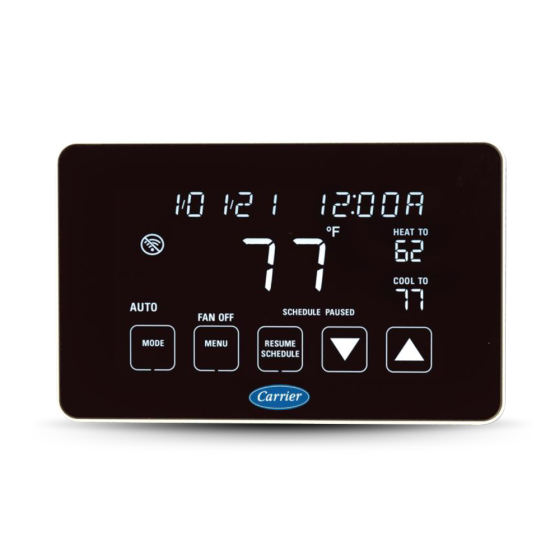

Connectstat 4.3 (3C/4H) BACnet, Segemented
FEATURES & BENEFITS
• Space and remote temperature sensing
• Space and remote humidity sensing
• BACnet MS/TP communications
• Wi-Fi connectivity
• Control of heating, cooling, and fan solid state 24 Vac outputs
• Space temperature sensing (> 0.5°F accuracy from 60°F to 90°F)
• Outdoor temperature sensing using a 10K @ 25°C J Curve (type II) thermistor connected to T and C terminals or Wi-Fi outdoor temperature, available by GPS location services, determined when the thermostat is installed
• Humidity sensing and control
• Remote humidity sensing from a 33ZCSENDRH-02 Humidity Duct Sensor or 33ZCSENSRH-02 wall sensor
• Wi-Fi connectivity (supports 802.11 a/b/g/n standards and utilizes a Broadcom chipset)
• Cloud Connectivity using the Carrier Connect mobile app (iOS and Android).
• Optimized installation (“finger friendly” spring-loaded connectors that accept 16 to 24 AWG wire and NO screwdriver required for wire insertion and removal)
• Optimized boot time (5 seconds total boot time until temperature displays and thermostat is fully operational)
• 4.3” segment display
• Thirteen touch points for display buttons
• OTA functionality (reprogrammable via Wi-Fi)
• Power requirements: 24 Vac +/- 10% @ 3VA
• Network Requirements: Wi-Fi connectivity supports Wi-Fi: 802.11 a/b/g/n standards on 2.4 GHz networks
• Environmental temperature range:
• Operating: 32° to 104°F (0° to 40°C)
• Storage: -40° to 135°F (-40° to 57°C)
• Humidity range:
• Operating: 10% to 95%, non-condensing, 32° to 104°F (0° to +40°C)
• Storage: 10% to 95%, non-condensing
• Connectors P104 and P105. 2 banks of “finger friendly” spring type terminal blocks intended to be wired by the end-user or installer
• Inputs:
• C - connection
• R - connection
• H - 0-10 Volt input
• T - remote thermistor
• Connections: Y3, O/B, Y2, Y1, G, W1, and W2
• Communications: 485 signal: A+ and B
• Mounting: Standard 4 x 2 in. electrical box using the 6-32 x 1/2 in. mounting screws and plastic wall anchors provided
• Overall dimensions Width: 5.15 in. (13.1 cm)
• Height: 3.25 in. (8.2 cm)
• Depth: 0.95 in. (2.4 cm)
• BACnet Support: Conforms to the BACnet Application Specific Controller (B-ASC) Device Profile as defined in ANSI/ ASHRAE Standard 135-2012 (BACnet) Annex L, Protocol Revision 14
• Listed by FCC Part 15, Subpart J compliant
INCLUDES
• Thermostat
• Mounting Hardware - two screws with drywall anchors and one security screw
• Quick Start Guide
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 1.000000 | Exterior Dimensions (W) (inches) | 5.200000 | Exterior Dimensions (H) (inches) | 3.500000 | Shipping Weight (lbs) | 1.000000 |
