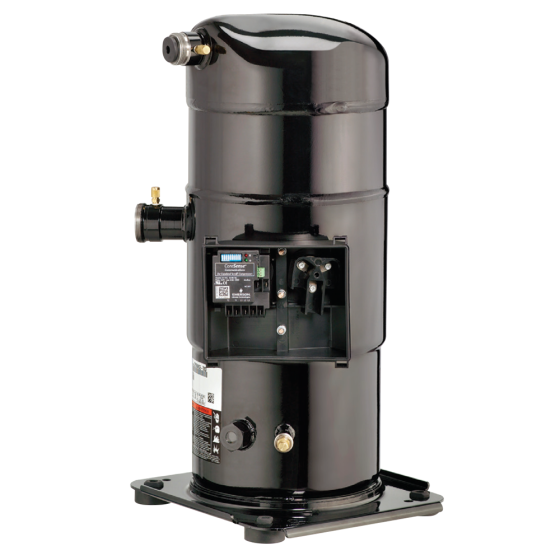

Copeland Hermetic Scroll Compressor R22, 190,000BTU, 460Vac, Three Phase
Item
ZR19M3E-TWD-961
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 190,000
• Refrigerant: R22
• Connection Type: Screw Terminals
• Oil: POE (Polyol Ester)
• Voltage: 460Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• MCC: 45
• LRA: 187
• RLA: 32.1
• Hertz: 60
• Suction Line Size: 2-1/4"
• Discharge Line Size: 1-3/4"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 32.1 | Voltage | 460 |
| Specification | |
|---|---|
| Refrigerant | R22 | Compressor Type | Scroll | BTU Rating | 161 to 200kBTU | Discharge Line Size | 1-1/4" | Oil | POE (Polyester) |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 100 | Exterior Dimensions (D) (inches) | 19.000000 | Exterior Dimensions (W) (inches) | 28.000000 | Exterior Dimensions (H) (inches) | 16.000000 | Shipping Weight (lbs) | 100.000000 |
