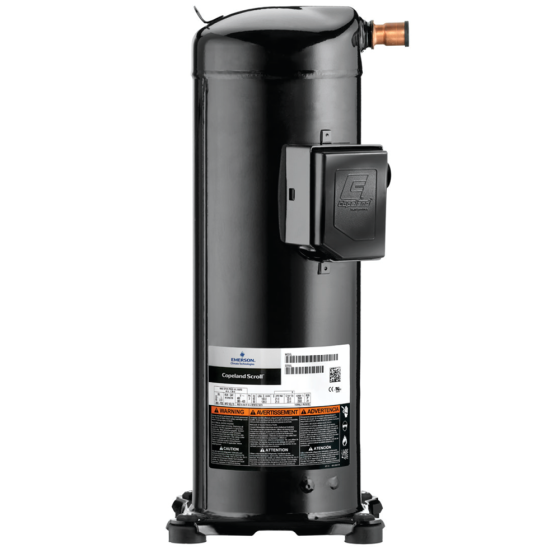

Copeland Hermetic Scroll Compressor R22, 61,000BTU, 208/230Vac, Single Phase
Item
ZR61K3E-PFV-950
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 61,000
• Refrigerant: R22
• Connection Type: Screw Terminals
• Oil: POE (Polyol Ester)
• Voltage: 208/230Vac
• Single Phase
• Capacitor Rating: 80/370µF
• MCC: 45
• LRA: 148
• RLA: 32.1
• Hertz: 60
• Suction Line Size: 7/8"
• Suction Line Height: 11.68"
• Discharge Line Size: 1/2"
• Discharge Line Height: 16.13"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 1 | RLA | 32.1 | Voltage | 208/230 |
| Specification | |
|---|---|
| Refrigerant | R22 | Compressor Type | Scroll | BTU Rating | 61 to 65kBTU | Suction Line Height | 11.68" | Discharge Line Height | 16.13" | Discharge Line Size | 1/2" | Oil | POE (Polyester) |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 100 | Exterior Dimensions (D) (inches) | 15.000000 | Exterior Dimensions (W) (inches) | 20.000000 | Exterior Dimensions (H) (inches) | 14.000000 | Shipping Weight (lbs) | 100.000000 |
