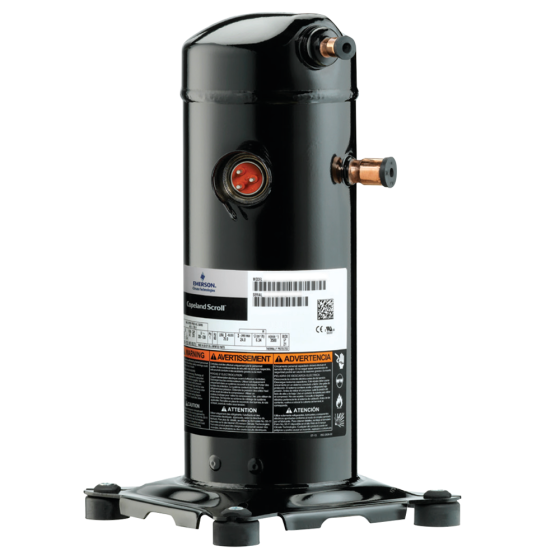

Copeland Hermetic Scroll Compressor R410A, 60,000BTU, 208/230Vac, Single Phase (Two Stage)
Item
ZPS60K5E-PFV-830
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 60,000
• Refrigerant: R410A
• Connection Type: Molded Plug (Not Included)
• Oil: POE (Polyol Ester)
• Voltage: 208/230Vac
• Single Phase
• MCC: 46.3
• LRA: 179.2
• RLA: 33.1
• Hertz: 60
• Suction Line Size: 7/8"
• Suction Line Height: 11.50"
• Discharge Line Size: 1/2"
• Discharge Line Height: 15.76"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 1 | Voltage | 208/230 |
| Specification | |
|---|---|
| Refrigerant | R-410A | Compressor Type | Scroll | BTU Rating | 56 to 60kBTU | Oil | POE (Polyester) |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 80 | Exterior Dimensions (D) (inches) | 14.250000 | Exterior Dimensions (W) (inches) | 13.250000 | Exterior Dimensions (H) (inches) | 20.000000 | Shipping Weight (lbs) | 80.000000 |
