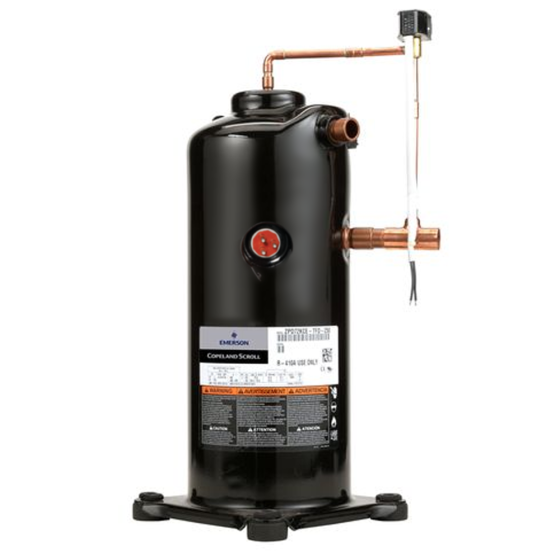

Copeland Hermetic Scroll Compressor R410A, 83,000BTU, 208/230Vac, Three Phase (Digital)
Item
ZPD83KCE-TF5-830
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 83,000
• Refrigerant: R410A
• Connection Type: Molded Plug (Not Included)
• Oil: POE (Polyol Ester)
• Voltage: 208/230Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• MCC: 37.5
• LRA: 186.6
• RLA: 26.8
• Hertz: 60
• Suction Line Size: 7/8"
• Suction Line Height: 11.68"
• Discharge Line Size: 1/2"
• Discharge Line Height: 18.12"
Electrical | |
---|---|
Hertz | 60 | Phase | 3 | Voltage | 208/230 |
Specification | |
---|---|
Refrigerant | R-410A | Compressor Type | Scroll | BTU Rating | 81 to 90kBTU | Oil | POE (Polyester) |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 100 | Exterior Dimensions (D) (inches) | 19.000000 | Exterior Dimensions (W) (inches) | 28.000000 | Exterior Dimensions (H) (inches) | 16.000000 | Shipping Weight (lbs) | 100.000000 |
