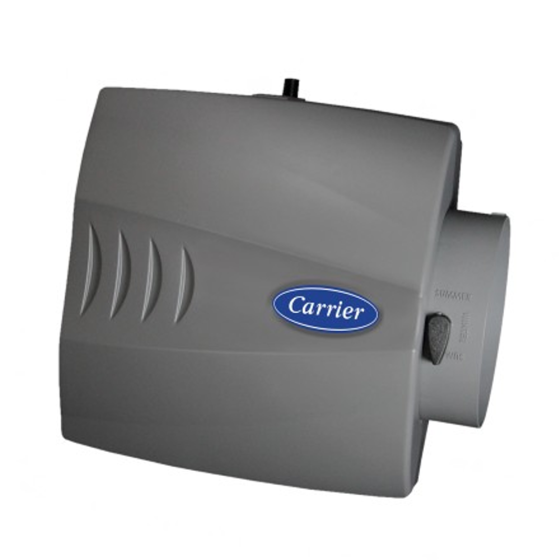

Carrier® Performance™ Water Saving Large Bypass Humidifier 17 GPD

FEATURES

Enjoy the air you breathe. A properly humidified home can help you breathe more comfortably with less dryness, save on energy costs, reduce static electricity, and even help protect your wood furniture.

This Performance bypass humidifier uses less electricity than fan-powered humidifiers by letting your furnace blower supply the air movement to drive moisture vapor into your ducts. Its unique, paper-panel design allows 100% water usage by wicking excess water into the water panel for use rather than allowing it to drain away.

Easy Access for Cleaning and Maintenance
The treated aluminum water panel (or wicking paper water panel in the water- saver model) ensures top performance. Front or side access door allows for quick and convenient removal and replacement of water panel.

Smooth, Low- Noise Operation
Nearly silent operation is the result of Carrier humidifier’s precision- engineered fan and motor combination on fan powered models. Air is drawn through the water panel quietly and efficiently, turning water into the water vapor that humidifies the home.

Long Lasting, Attractive Cover
The outside casing and interior components of all Carrier humidifiers are made from durable UV resistant plastic. This plastic resists deterioration, even when exposed to ultra- violet light sources common in many systems.

Built- In Bypass Damper
Optimum Distribution of Moisture
Through the combination of the solenoid valve and water distribution system by Carrier, homeowners will benefit from the most optimum distribution of moisture possible.

Four Humidity Control Options
Choose between four separate control options, the Humidistat, the HumidiTrac™, the Thermidistat™, and the Infinity system Control. Each of these units provide precise control over the humidity levels in the home.

Granite Gray
Color- compatible with most HVAC equipment. Water Saver Models - WBP Series units deliver 100% of water used. For use in applications where water costs are high, with septic systems or in drought- stricken areas.

SPECIFICATIONS

• Output Gallons (Liters)/Day: 17 (64)
• Airflow: Bypass
• Water Flow: Sump with Overflow Drain
• Water Panel Replacement: P110- 4545
• Water Panel in (mm) (H x W x D): 13 x 10 x 1- 11/16 (330 x 254 x43)
• Water Panel Access: Quick Release Cover
• Unit Size in (mm) (H x W x D): 15- 1/8 x 14 x 10- 1/4 (384 x 356 x 260)
• Weight lbs (kg): 8.0 (4)
• Water Usage Gal (liters)/hr): 3 (11)

ELECTRICAL CONTROL LOW- VOLTAGE SOLENOID
Volts: 24V- 60Hz
Amps (Max): 0.5
VA (Max): 12
Watts: 2.3

CONNECTIONS
Water Inlet: 1/4- in. Copper Tubing
Water Drain: 1/2- in. I.D. plastic hose 7/8- in. Tube
Bypass Opening: 6- in. round elbow or straight
Duct Opening in (mm) (W x H): 9- 7/8 x 12- 5/8 (251 x 321)

STANDARD EQUIPMENT
Water Valve: Solenoid, 24VAC
Humidistat: 24V (not included)
Saddle Valve: Standard
Damper: Standard
Template Installation Sheet: Included
