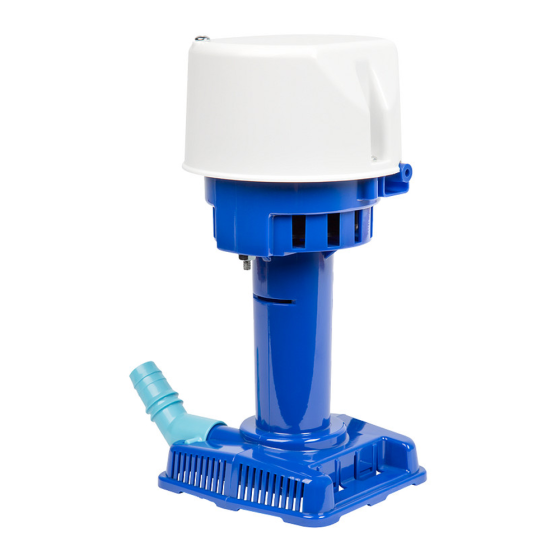

LittleGIANT® Cooler Pump 230Vac, 15,000 CFM, 502 GPH

APPLICATIONS

For use in evaporative coolers, sales displays, laboratories, water bath circulation and many other uses. Ideal as a universal OEM replacement pump.

Ideal for residential, commercial, and industrial cooler pump replacement.

FEATURES & BENEFITS

• High quality concentric fan-cooled double coil motor
• Thermal overload protection
• One-piece corrosion resistant steel shaft
• Universal mounting configurations
• 45° discharge adapter
• Optional 900 elbow with bleed off port available
• Low pump down and recovery level
• Grounded electric plug
• 6 ft electric cord
• Flame retardant housing
• Snap-off volute plate for easy cleaning
• Connection Size: 5/8 in. & 3/4 in.
• HP: 1/50 hp
• Frequency: 50/60 Hz
• Volts: 230 VAC
• Cord Length: 5 ft
• Maximum CFM: 15,000
• Maximum Flow Rate - 60Hz: 8.37 GPM / 502 gph
• Flow Rate At 1ft: 8.37 GPM / 502 gph
• Shut-Off: 11 ft
• Safety Switch: No
• Check Valve: Yes
• Product Weight: 3 lb.
• Tubing Included: No
• Electrical Agency Approvals: CSA/UL
• Standard Warranty: 12 Months
