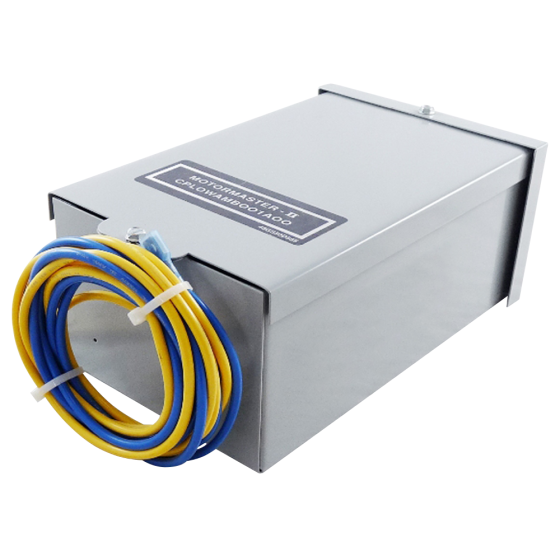

MotorMaster® II Head Pressure Controller for Small Packaged Products (2 to 5 Tons)
Item
CPLOWAMB001A00
FEATURES
The Motormaster II head pressure controller is a cycle control device activated by a temperature sensor mounted on a header tube of the outdoor coil (see Fig. 1). It is designed to cycle the outdoor-fan motors to maintain the saturated condensing temperature within normal operating limits of approximately 130 to 110_F high (54_C to 43_C), 70 to 50_F low (21 to 10_C). The controller maintains working head pressure at low ambient temperatures down to --20_F (--29_C) when properly installed.
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 7 | Exterior Dimensions (D) (inches) | 11.000000 | Exterior Dimensions (W) (inches) | 7.000000 | Exterior Dimensions (H) (inches) | 5.000000 | Shipping Weight (lbs) | 8.000000 |
