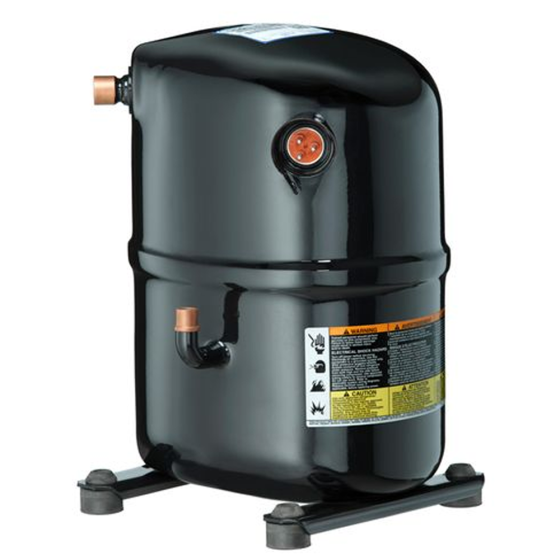

Copeland Hermetic Reciprocating Compressor R22, 35,000BTU, 460Vac, Three Phase
Item
CR35K6E-TFD-775
FEATURES & BENEFITS
• Compressor Type: Reciprocating• BTU Rating: 35,000
• Refrigerant: R22
• Connection Type: Molded Plug (Not Included)
• Oil: POE (Polyol Ester)
• Voltage: 460Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
• MCC: 6.7
• LRA: 41
• RLA: 4.8
• Hertz: 60
• Suction Line Size: 3/4"
• Suction Line Height: 12.13"
• Discharge Line Size: 1/2"
• Discharge Line Height: 6.24"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 4.8 | Voltage | 460 |
| Specification | |
|---|---|
| Refrigerant | R22 | Compressor Type | Reciprocating | BTU Rating | 31 to 35kBTU | Suction Line Height | 11.82" | Discharge Line Height | 5.86" | Discharge Line Size | 1/2" | Oil | POE (Polyester) | BTU Output | 35000 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 67.95 | Exterior Dimensions (D) (inches) | 9.700000 | Exterior Dimensions (W) (inches) | 7.500000 | Exterior Dimensions (H) (inches) | 13.500000 | Shipping Weight (lbs) | 80.000000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico |
