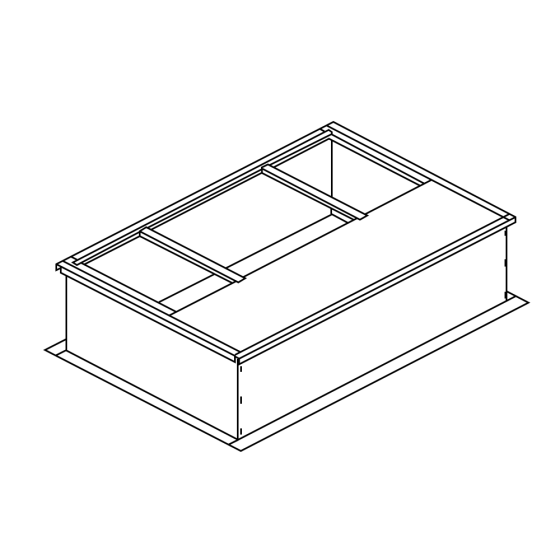

MicroMetl Roof Curb, 14" Tall, Knockdown, No Pitch, Insulated Deck Pan
Item
CRBK-SPPSMSA-141H
FEATURES
Knockdown Curb - 14 Inches Tall Non Insulated Partial Perimeter, Using Micro-Lock Galvanized Metal Construction. Knockdown Roof Curb Without Pitch, Insulated Deck Pans Included, Includes Wood Nailer, And Gasket Package.
SPECIFICATIONS
• Weight: 85lbs/38.56kg• Assembled Length O.D.: 46.04
• Assembled Width O.D.: 30.61
• Corner Type: Micro-Lock
• Composition: Galvanized Metal
• Insulated: Non Insulated
• Perimeter: Partial Perimeter
• Perimeter Gauge: 20
• Deck pan: Included
• Deck pan Gauge: 20
• Deck pan Description: Galvanized Metal, Using 1 Inch Insulation, R Value 4.2
• Gasket: 9430-0100, 9430-0200, 9430-2800
• Gasket Description: 0.25 X 1.5 Inch Multipurpose Medium Density Foam Gasket. 0.75 X 1.0 Inch Two Pound Polyester Urethane Sealing Gasket.
| Specification | |
|---|---|
| Adjustable Pitch | No | Curb Height | 14" | Structurally Calculated | No | Structure | Knockdown |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 85 | Exterior Dimensions (D) (inches) | 46.040000 | Exterior Dimensions (W) (inches) | 30.610000 | Exterior Dimensions (H) (inches) | 14.000000 | Shipping Weight (lbs) | 100.000000 |
