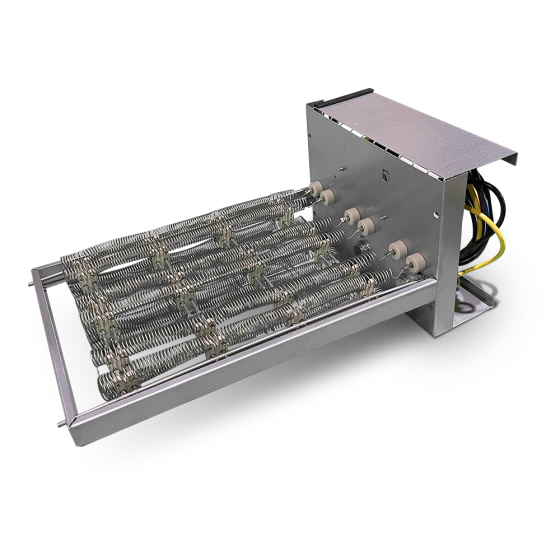

Small Rooftop Unit Electric Heater Kit, 6.5kW @ 240Vac, 1 or 3 Phase
PRODUCT DETAILS
This heater accessory is designed for use on the following models:
(NOTE: Not all available heater modules may be used in every unit. Use only those heater modules that are UL listed for use in a specific size unit. Refer to the label on the unit cabinet for the list of approved heaters.)
CARRIER MODELS
MODEL NUMBER / CHASSIS GROUP / UNIT SIZES
50HC / AC-2 / 04-14
50HCQ / HP-2 / 04-12
50KC / AC-1 / 04-06
50KCQ / HP-1 / 04-06
50LC / AC-3 / 04-12
50TC / AC-1 / 04-16
50TCQ / HP-1 / 04-14
BRYANT MODELS
MODEL NUMBER / CHASSIS GROUP / UNIT SIZES
547J / HP-1 / 04-06
548J / HP-1 / 04-14
549J / HP-2 / 04-12
551J / AC-2 / 04-14
558J / AC-1 / 04-16
559J / AC-1 / 04-06
FEATURES & BENEFITS
• Kilowatt Rating: 4.9kW @ 208Vac, 6.5kW @ 240Vac
• Voltage: 208/230Vac
• 1 or 3 Phase (Field Convertible)
INCLUDES
• Heater module
• Wiring label
• Red wire (10 gauge)
• Splice connector
• Wire tie
• Label, Max Temp/Static
Electrical | |
---|---|
Phase | 1/3 | Voltage | 208/230 |
Specification | |
---|---|
Nominal kW Rating | 6.5kW |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 7 | Exterior Dimensions (D) (inches) | 17.520000 | Exterior Dimensions (W) (inches) | 10.000000 | Exterior Dimensions (H) (inches) | 7.375000 | Shipping Weight (lbs) | 8.000000 |
