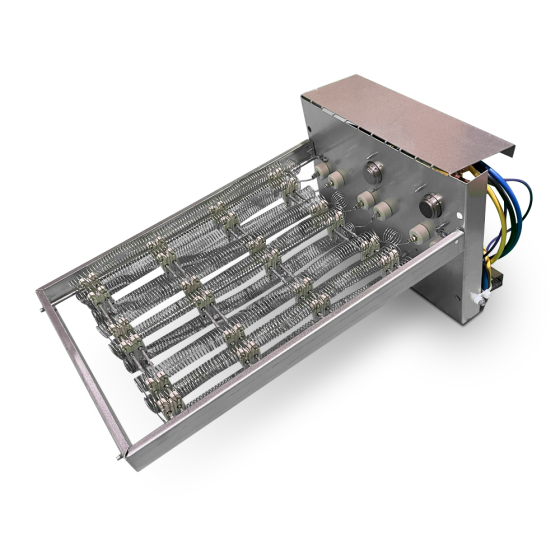

Carrier® Small Rooftop Unit Electric Heater Kit, 6kW, 480Vac, 3 Phase

PRODUCT DETAILS

This heater accessory is designed for use on the following models:

(NOTE: Not all available heater modules may be used in every unit. Use only those heater modules that are UL listed for use in a specific size unit. Refer to the label on the unit cabinet for the list of approved heaters.)

CARRIER MODELS
MODEL NUMBER / CHASSIS GROUP / UNIT SIZES
50HC / AC-2 / 04-14
50HCQ / HP-2 / 04-12
50KC / AC-1 / 04-06
50KCQ / HP-1 / 04-06
50LC / AC-3 / 04-12
50TC / AC-1 / 04-16
50TCQ / HP-1 / 04-14

BRYANT MODELS
MODEL NUMBER / CHASSIS GROUP / UNIT SIZES
547J / HP-1 / 04-06
548J / HP-1 / 04-14
549J / HP-2 / 04-12
551J / AC-2 / 04-14
558J / AC-1 / 04-16
559J / AC-1 / 04-06

FEATURES & BENEFITS

• Kilowatt Rating: 6kW @ 480Vac
• Voltage: 460Vac
• 3 Phase

INCLUDES

• Heater module
• Wiring label
• Label, Max Temp/Static
