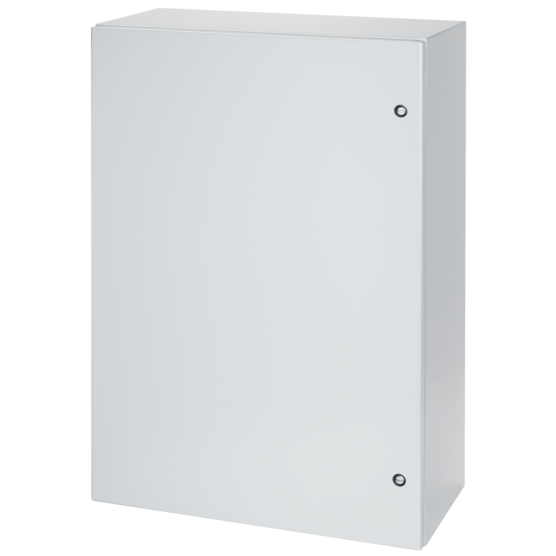

Concept Single-Door Enclosure 20" x 20" x 6", 16 Ga (NEMA 4)

FEATURES

Concept Enclosures have streamlined styling, flush quarter-turn latches and an attractive, durable finish.

• Seams continuously welded and ground smooth

• Corner-formed doors

• Simple easy-to-remove and install hinge pins with built-in captivation clip

• High-torque threadless studs and fasteners on door

• Minimum-width body flange provides maximum door opening (210 degrees)

• Door opens 210 degrees

• External formed body flange

• Panel mounting studs fit optional Concept panels and other accessories

• Mounting holes in back of body for optional external wall-mount brackets

• Removable door with hidden hinges for clean, aesthetic appearance

• Seamless foam-in-place gasket

• Quarter-turn slotted latch(es)

• Door alignment device on doors wider than 30 inch

• Four hinges on 60-inch high enclosures

• Grounding stud on body; bonding provision on door

• Provisions on door for optional high-impact thermoplastic data pocket

• Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers

• Installation instructions provided

• Three-point latch system on enclosures where A is equal to or greater than 42-in. with quarter-turn, slotted latch

• UL 508A Listed; Type 4, 12; File No. E61997

• cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. E61997

• Wall-mounting brackets required to maintain UL/CSA external mounting requirement.

• NEMA/EEMAC Type 4, 12, 13

• IP66

• IEC 60529, IP66

• Height: 20 in

• Width: 20 in

• Depth: 6 in

• Material: Mild Steel

• Finish: Powder Coated

• Color: Gray

• Color Code: ANSI 61

• Body Thickness: 16 ga

• Door Thickness: 16 ga

• Panel Size: 18.20 x 18.20 in

• Mounting: 18.50 x 18.50 in

• Latch Quantity: 1

• Latch Type: Quarter-Turn

Safety Standards
California Prop 65	Yes
Hazardous Material	No

Weights and Dimensions
Operating Weight (lbs)	5
Exterior Dimensions (D) (inches)	20.000000
Exterior Dimensions (W) (inches)	20.000000
Exterior Dimensions (H) (inches)	6.000000
Shipping Weight (lbs)	5.000000
