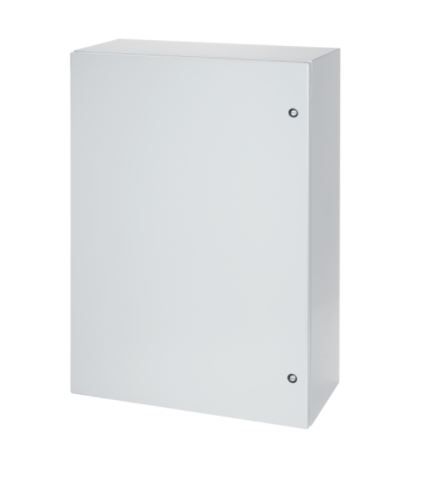

Concept Single-Door Enclosure 24" x 24" x 8", 16 Ga (NEMA 4)
FEATURES
Concept Enclosures have streamlined styling, flush quarter-turn latches and an attractive, durable finish.
• Seams continuously welded and ground smooth• Corner-formed doors• Simple easy-to-remove and install hinge pins with built-in captivation clip• High-torque threadless studs and fasteners on door• Minimum-width body flange provides maximum door opening (210 degrees)• Door opens 210 degrees• External formed body flange• Panel mounting studs fit optional Concept panels and other accessories• Mounting holes in back of body for optional external wall-mount brackets• Removable door with hidden hinges for clean, aesthetic appearance• Seamless foam-in-place gasket• Quarter-turn slotted latch(es)• Door alignment device on doors wider than 30 inch• Four hinges on 60-inch high enclosures• Grounding stud on body; bonding provision on door• Provisions on door for optional high-impact thermoplastic data pocket• Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers• Installation instructions provided• Three-point latch system on enclosures where A is equal to or greater than 42-in. with quarter-turn, slotted latchINDUSTRY STANDARDS
• UL 508A Listed; Type 4, 12; File No. E61997• cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. E61997• Wall-mounting brackets required to maintain UL/CSA external mounting requirement.• NEMA/EEMAC Type 4, 12, 13• IP66• IEC 60529, IP66SPECIFICATIONS
• Height: 24 in• Width: 24 in• Depth: 8 in• Material: Mild Steel• Finish: Powder Coated• Color: Gray• Color Code: ANSI 61• Body Thickness: 16 ga• Door Thickness: 14 ga• Panel Size: 22.20 x 22.20 in• Mounting: 22.50 x 22.50 in• Latch Quantity: 2• Latch Type: Quarter-Turn
Safety Standards |
California Prop 65 |
Yes |
Hazardous Material |
No |
Weights and Dimensions |
Operating Weight (lbs) |
6 |
Exterior Dimensions (D) (inches) |
24.000000 |
Exterior Dimensions (W) (inches) |
24.000000 |
Exterior Dimensions (H) (inches) |
8.000000 |
Shipping Weight (lbs) |
6.000000 |
