FEATURES

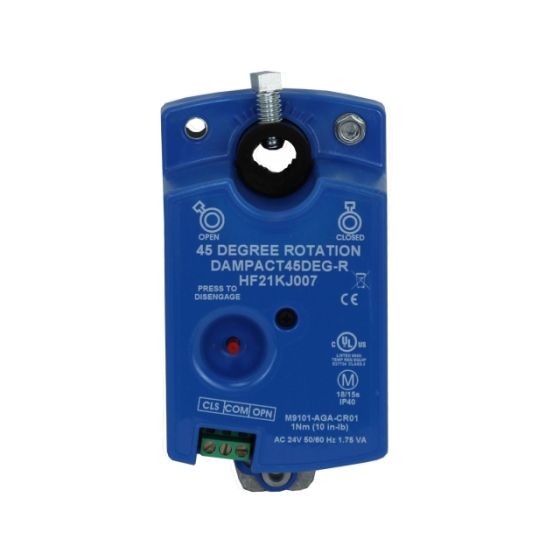

Kit Part No. DAMPACT45DEG-S and DAMPACT90DEG-S are the replacement actuators designed for residential dampers. These kits contain the actuator, an anti-rotation mounting screw, and an Installation Instruction. They can be used on dampers having round shafts or the newer dual flatted shafts. The 24VAC direct-drive actuator provides smooth, quiet performance in a smaller package.
The DAMPACT45DEG-S kit is intended for round and newer rectangular dampers having a 45-degree rotation from closed to open.
The DAMPACT90DEG-S kit is for slip-in and older rectangular dampers which rotate through 90 degrees from closed to open. Ninety-degree rectangular dampers have round shafts while 45-degree rectangular dampers have dual flatted shafts with an arrow on the shaft end.
• 1/2" direct-drive mounting hub for securing damper blade and shaft to actuator housing• Spring-loaded disengagement (quick blade release button) for momentary release of main gear and damper blade
• Recessed terminal block wiring
