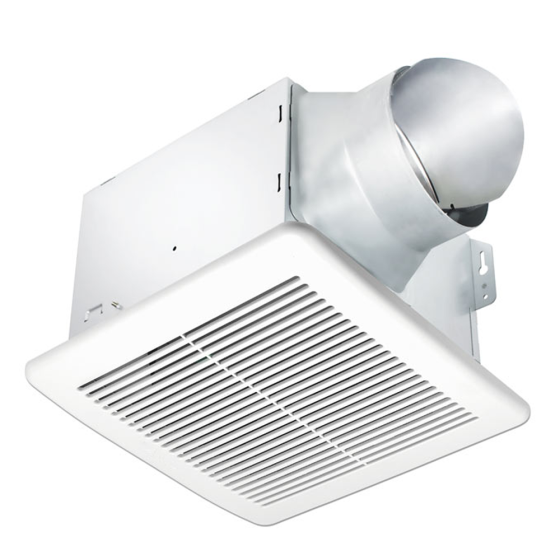

DeltaBreezSmart ENERGY STAR® Certified Ventilation Fan 6 in. Round Duct, 200CFM, 0.4 Sones, 120Vac

FEATURES

The Smart Choice.

Delta BreezSmart SMT150-200 is suitable for ceiling mount installation. It is ENERGY STAR qualified with Brushless DC Motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 200 CFM and loudness rating of 1.0 sone at 0.1” static pressure as certified by the Home Ventilating Institute (HVI); power consumption of not more than 24 Watts with efficiency rating of not more than 8.3 CFM/Watt at 0.1” static pressure; fan will feature motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. UL/cUL listed for tub/shower enclosure when use with GFCI-protected branch circuit wiring.

• ENERGY STAR® qualified with innovative brushless DC motor technology
• UL approved for ceiling mount installation
• Perfectly quiet operation at 0.4 sones (150 CFM); 1.0 sone (200 CFM)
• Adjustable high speed 150 CFM or 200 CFM
• Energy efficiency at 10.7 CFM/Watt (150 CFM), 8.3 CFM/Watt (200 CFM)
• LED indicator will be green when power is on
• Annual energy cost for 24/7 operation is approximately $14.71* (80 CFM) or $25.24* (200 CFM)

DC Motor/Blower
• Power rating of 120 volts/60Hz
• Motor equipped with thermal cutoff fuse
• Removable with permanently lubricated plug-in motor
• Full speed adjustable, 150 or 200 CFM
• Built-in soft start function to increase bearings’ life
• Automatically powers OFF when impeller is locked abnormally

Housing
• Galvanized steel body
• Detachable 6” diameter metal duct adapter
• Built-in backdraft damper
• Hanger bars included
• Easy installation

Grille
• Attractive design using ABS material
• Attaches directly to housing with torsion springs

LED Indicator
• Turn the power switch on/off to operate on/off
• LED indicator will be green when power is on

Warranty
• 3-Year limited warranty
