FEATURES

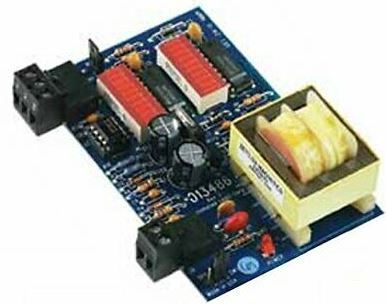

The DIAG485 is a diagnostic board that shows the communication signal levels on the network segment. The DIAG485 can also reduce the effects of noise on the CMnet by adding bias.
SPECIFICATIONS
Power• 24VAC, 0.3A, 50-60Hz, 7.2VA (Single Class 2 Source Only, 100VA or less).
Temperature Range
• 0 to 130 °F (-17.8 to 54.4 °C).
Operating Humidity Range
• 10-90% relative humidity, non-condensing.
| Safety Standards | |
|---|---|
| California Prop 65 | Yes | Hazardous Material | No |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 4.000000 | Exterior Dimensions (W) (inches) | 1.000000 | Exterior Dimensions (H) (inches) | 5.000000 | Shipping Weight (lbs) | 1.000000 |
