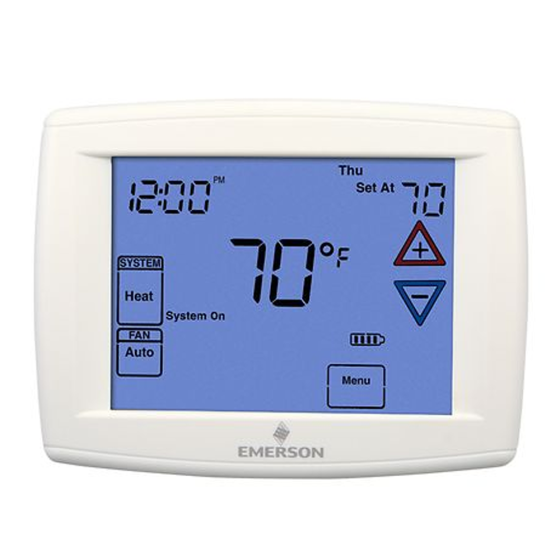

Emerson Blue™ Series 7/5+1+1 Day Programmable Thermostat 2H/2C (4H/2C HP), 24Vac/3Vdc (2 AA - Humidity Control & Remote Sensor Capable)

FEATURES

• Universal models quickly configure for single stage, multi-stage or heat pump
• Heat pump dual fuel option (with or without outdoor sensor) eliminates the need for a fossil fuel kit
• Humidification/dehumidification control
• Commercial model offers occupied damper or economizer control
• Keypad lockout and set-point temperature limits

SPECIFICATIONS

• Program Options: Programmable - 7 Day, 5+1+1 Day or Non-Programmable
• Program Periods Per Day Options: 4, 2, None
• Stages Heat/Cool: Universal - Single Stage 1H/1C, Multi-Stage 2H/2C, Heat Pump 4H/2C
• Style: Horizontal
• Typical Applications: Gas/Oil/Electric
• Terminals: RC, RH, C, W/E, W2, Y, Y2, O/B, G, L, 6, +, S, -, DHM, HM
• 3-Wire Zone Valve Connections: Yes
• Millivolt Compatible: Yes
• Economizer Connections: No
• Humidity Control: Yes, Humidification and Dehumidification Option
• Heat Pump Dual Fuel Control: Yes, Logic Option - No Sensor Required or Outdoor Sensor Option - Outdoor Sensor Provides Outdoor Temperature Setting to Lockout the Heat Pump and Switch to Gas Heat
• Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option: Outdoor Sensor Provides Outdoor Temperature Setting to Lockout Auxiliary Heat
• Remote Sensor Options: 1 Indoor or Outdoor
• Power Source: Battery, Hardwire, Power Stealing
• Auto Changeover (Heat/Cool): Yes
• Fan Option: Auto, On, Programmable Fan or Comfort Circulating Fan
• Filter Change Reminder: Yes
• Energy Mgt. Recovery/Early Start: Yes
• Keypad Lockout: Total or Partial
• Set-Point Temperature Limits: Yes
• Display Type: 12 square in.
• Backlight: Key Press or Continuous with Common Wire
• Voltage: 20 to 30 Vac 50/60 Hz
• Amp Rating: 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
• Set-Point Range: 45 to 99°F (7 to 37°C)
