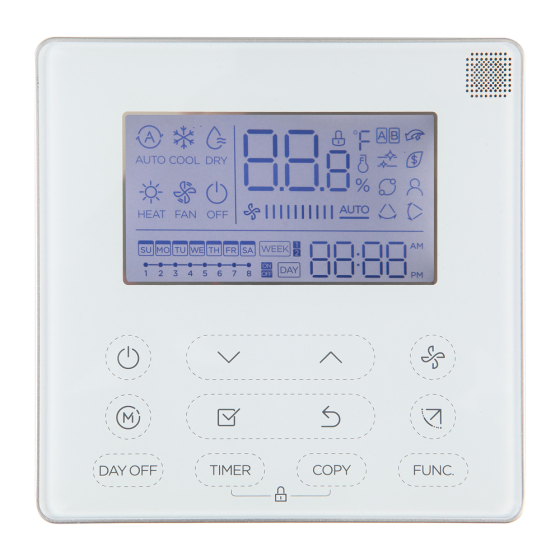

Wired Remote Control 7 Day Programmable

FEATURES

• LCD Display
• °F/°C Convertible
• Backlight display
• Follow Me default, temperature sensing on the controller
• 4-wire quick connect
• Room temperature display
• Troubleshooting error code display
• Infrared IR receiver built-in
• Clock
• 12 HR format (am/pm)
• Weekly Schedule 7 day programmable
• Mode: Auto-Cool-Dry-Heat-Fan

• Operation Mode Locking
– CH Heat Pump
– CC Cooling Only
– HH Heating Only
– NA No Auto Mode

• Fan Speed: Auto/Low/Med/High speed
• Set temperature range limit
• Airflow direction Horizontal and Vertical (on some models)
• Temperature Setting
• Child Lock

SPECIFICATIONS

• Input Voltage: DC 5V
• Ambient Temperature: 23 ~ 110°F (-5 - 43°C)
• Ambient Humidity: 40%RH ~ 90%RH

INCLUDES

• Wire controller
• Installation and owner's manual
• 3 Screws M4*20
• 3 Wall plugs
• 2 Screws M4*25
• 2 Plastic screw bars
• Connection Extension Cable 19 feet (6 meters)
• Adapter Wire
• Battery CR2032 3VDC
• EMC Ferrite core (magnetic ring)
• Adapter board (multifunction board)
• Harness line set 1# (7 wires)
• Harness line set 2# (3 wires)
