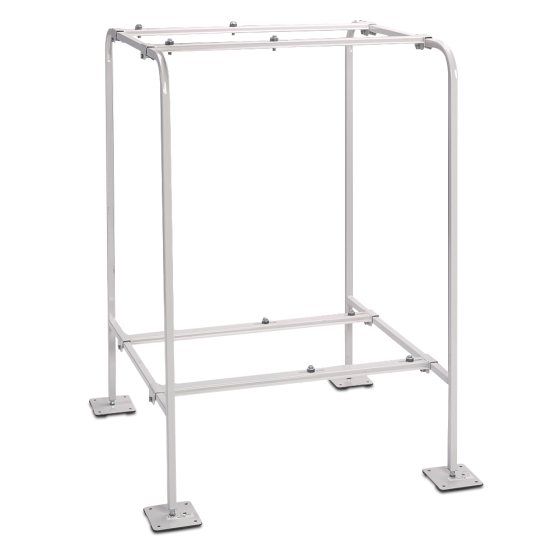

DiversiTech® Quick-Sling® Stand (Double-Stack Mini-Split)
Item
QSMS1203
APPLICATIONS
The Quick-Sling® QSMS1203 is a 12 in. (height) double stack mini split condensing unit stand for 2 single fan units one above the other. This saves space by allowing 2 systems to only take up the footprint of a single unit. The offset mounting arms allow heat pumps to be staggered so top unit does not drip on bottom. Refer to our online Quick-Sling product compatibility app to select the stand that matches your equipment.
FEATURES & BENEFITS
• Fits All Mini Splits
• 12 Points of anti-vibration isolation
• Total Max weight 400 lbs on the bottom - 200 lbs on top
• Each foot is 6"x6" 11 gauge steel and is adjustable up to 1.25" in height.
• Powder Coated for long lasting outdoor use
• All necessary hardware included
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 35 | Exterior Dimensions (D) (inches) | 56.000000 | Exterior Dimensions (W) (inches) | 39.000000 | Exterior Dimensions (H) (inches) | 10.000000 | Shipping Weight (lbs) | 35.000000 |
