FEATURES

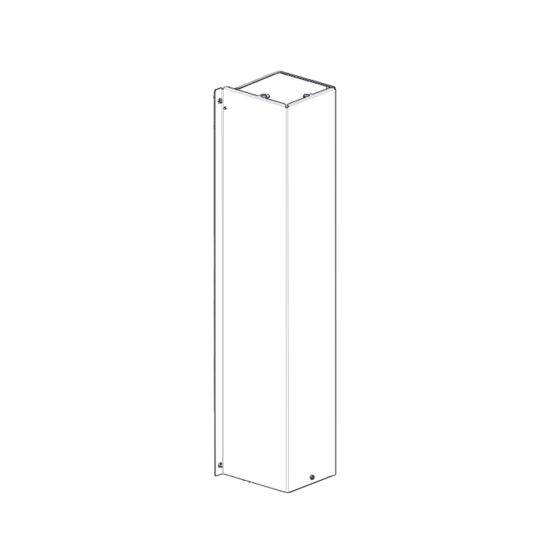

To protect against exposed hot surfaces, the downflow vent guard should always be used when the vent pipe is installed along the outside of the furnace casing in a downflow application. This kit contains spacers to accommodate for both shallow door and deep door designed furnaces. This kit is designed for single or double wall 4” pipe. Type B vent connector after the Vent Guard is REQUIRED for all 2-stage applications.
INCLUDES
• 1 Guard Front 327717-401• 1 Guard Back 327718-401
• 1 Spacer - Deep Door 327719-401
• 1 Spacer - Shallow Door 337083-401
• 1 Guard Bottom 327720-401
• 14 Screws FBN5806B
• 1 Installation Instructions
| Safety Standards | |
|---|---|
| California Prop 65 | Yes | Hazardous Material | No |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 20 | Exterior Dimensions (D) (inches) | 38.000000 | Exterior Dimensions (W) (inches) | 8.000000 | Exterior Dimensions (H) (inches) | 8.000000 | Shipping Weight (lbs) | 20.000000 |
