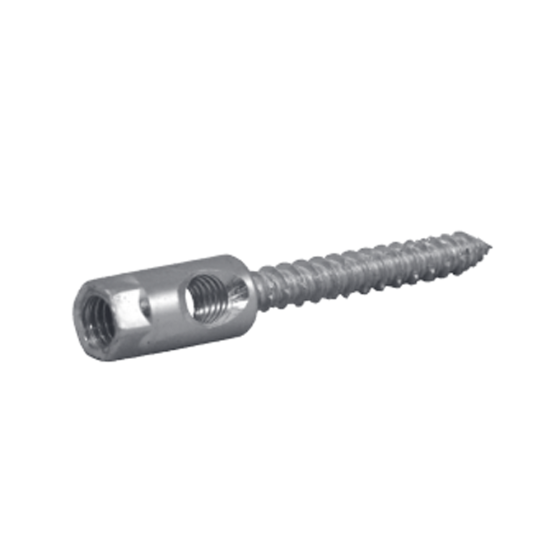

Duro Dyne® Wood Dual Hanger 3/8 in. Rod Size, 2-1/4 in. Length (25 pk)
Item
DHW38-25
FEATURES
When preparing to suspend HVAC equipment, ductwork or accessories, threaded anchor points are often required. Dual Hangers from Duro Dyne are one-piece anchors that feature heads that are both end-tapped and cross tapped to permit both in-line mounting and side-mounting of threaded rod systems, eye rings and more. There are two variations of Dual Hangers; one for penetrating and threading into steel and one for wood.
• Hang Threaded Rod Horizontally or Vertically with the same hanger• No pilot hole is needed for Dual Hangers
• All fasteners are zinc plated for corrosion resistance
• Chucks sold separately for easy installation
SPECIFICATIONS
• Thread: 5/16”• Threaded Rod Size: 3/8”
• Ultimate Tension Load (lbs) Vertical: 2,670
• Ultimate Tension Load (lbs) Horizontal: 1,450
| Specification | |
|---|---|
| Length | 2-1/4 in. |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 7 | Exterior Dimensions (D) (inches) | 4.000000 | Exterior Dimensions (W) (inches) | 4.000000 | Exterior Dimensions (H) (inches) | 4.000000 | Shipping Weight (lbs) | 7.000000 |
