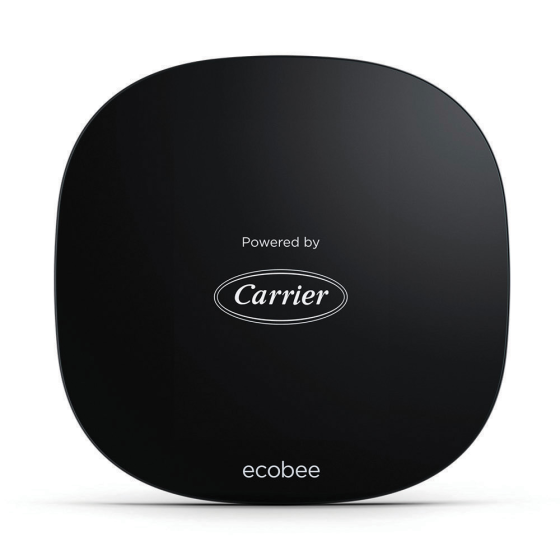

ecobee 3 Lite Smart Thermostat Pro with Wi-Fi, Powered by Carrier® 2H/2C (4H/2C HP), 24Vac (Builders)

Item
EB-STATE3LTCB-01
  • California Prop 65

APPLICATIONS

The ecobee3 lite Pro, Powered by Carrier provides your customers with freedom and flexibility to manage their home environment. These thermostats help homeowners conserve energy, save money and reduce their environmental impact. They support a furnace with AC and up to 2-stages of heat. For heat pumps (air to air or Geothermal) they support up to four stages of heat (2-stage heat pump, 2-stage auxiliary heat) and two stages of cool. For these systems the thermostats can control a single accessory, such as a humidifier, dehumidifier, ventilator, HRV or ERV. Also, the thermostats can be installed with the PEK if a C wire isn't present. Additionally, the thermostats can control boilers with or without an AC. When connected to a boiler, the thermostats support up to 2-stage of heat and 2-stages of cool and a single accessory, such as a humidifier, dehumidifier, ventilator, HRV or ERV. When used with a boiler they cannot be installed with the PEK if a C wire isn't present, the C wire must come from the air handler, not the boiler.

FEATURES & BENEFITS

• Conventional (2H/2C)—Gas, oil, electric.
• Boiler (2-stage-heating).
• Air-Cooled & Geo-Thermal Heat pumps (2 stage heat pump + 2 stage aux heat/2 cool) (4H/2C).
• Dual-Fuel support.
• Wire Terminals: RC, G, Y1, Y2, O/B, RH, C, W1, W2, PEK
• Wired 24VAC through terminals C or Rc.
• Wi-Fi, IEEE 802.11 b/g/n @ 2.4 GHz, Wi-Fi Protected Access (WPA/WPA2), Wired Equivalent Privacy (WEP), DHCP (dynamic) or static IP addressing, Transport Layer Security (TLS) 915MHz
• Mercury free
• Arsenic free
• PVC free
• ROHS compliant
• 3.5” full-color LCD touch screen
• 30 x 480 pixel display
• 5-year warranty (PRO install only)

Specification
Millivolt Compatible No
Permanent Hold Yes
Stages (Conventional) 2 Heat, 2 Cool
Stages (Heat Pump) 4 Heat, 2 Cool
Touchscreen Yes
WiFi Capability Yes
Temporary Hold Yes
Remote Sensing Capability Yes
Power Method Hardwire (24Vac)
Key Pad Lockout Yes
Humidification Controls Yes
Filter Indicator Yes
Battery Backup No
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 3
Exterior Dimensions (D) (inches) 7.000000
Exterior Dimensions (W) (inches) 7.000000
Exterior Dimensions (H) (inches) 4.000000
Shipping Weight (lbs) 3.000000
