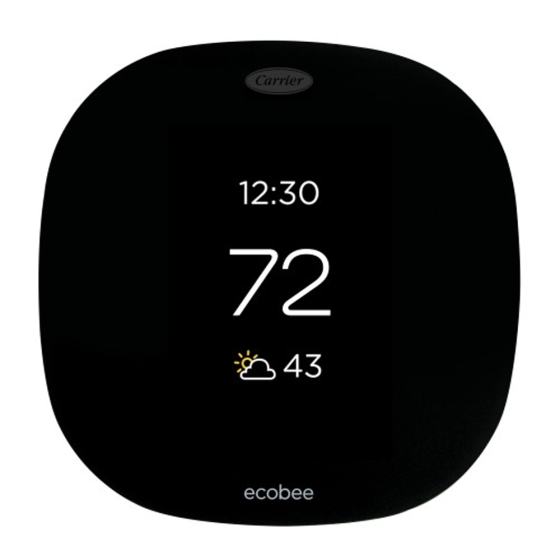

ecobee 3 Lite Smart Thermostat with InteliSense™ & Wi-Fi, Powered by Carrier® 2H/2C (4H/2C HP), 24Vac

Item
EB-STATE3LTICR-01
  • California Prop 65

APPLICATIONS

One easy install can make all the difference. The ecobee3 lite is reliable, simple, efficient, compatible, comfortable, provides savings, is expertly installed and has advanced controls. It is designed for quick and easy installation; everything needed is in the box. Plus, they can control from anywhere with any iOS® or Android® device (*Thermostat must be connected to Wi-Fi®. App requires iOS® or Android® mobile device).

FEATURES

InteliSense™ Technology
Pairing this smart thermostat with InteliSense™ enabled equipment means technicians can gather system data to monitor performance and help protect your investment. It also allows for quicker and more efficient service when you need it.

Compatibility
Conventional (2H/2C) – Gas, oil, electric.
Boiler (two-stage-heating).
Air-Cooled & Geo-Thermal Heat pumps (two-stage heat pump + two-stage aux heat/2 cool) (4H/2C).
Dual-Fuel support.

Wire terminals
RC, G, Y1, O/B, RH, C, W1, W2, Y2

Powering method
Wired 24VAC through terminals C or RC.

Connectivity and security
Wi-Fi, IEEE 802.11 b/g/n @ 2.4 GHz
Wi-Fi Protected Access (WPA/WPA2)
Wired Equivalent Privacy (WEP)
DHCP (dynamic) or static IP addressing
Transport Layer Security (TLS)
915MHz

Power consumption
Less than 3.5VA

Bandwidth
15-20 MB/month

Thermostat sensors
Temperature
Humidity
Proximity

Sustainability
Mercury-free
Arsenic-free
PVC-free
RoHS-compliant

InteliSense technology
Control through iOS & Android apps and Apple Watch

Temperature range
Desired: 45° F to 92° F (7° C to 33° C)
Display: 40° F to 100° F (5° C to 37° C)
Sensitivity: +/- 1° F (+/- 0.5° C)
Operating: 32° F to 130° F (0° C to 55° C)

Humidity range
Display: 20% to 90% RH
Sensitivity: +/- 5% RH
Operating: 5% to 95% RH (non-condensing)

Storage
Temperature: -31° F to 113° F (-35° C to 45° C)
Humidity: 5% to 95% RH (non-condensing)

Display
3.5" full-color LCD touch screen
320 x 480 pixel display

HomeKit-enabled
HomeKit requires an iPhone, iPad, or iPod touch with iOS 9 or later. Controlling HomeKit-enabled accessories away from home requires an Apple TV with tvOS 9.0 or later and an iPhone, iPad, or iPod touch with iOS 9 or later.

Warranty (Pro install only)
Five-year limited warranty

Product dimensions
Smart Thermostat
Length: 102.8 mm
Width: 102.8 mm
Depth: 21.4 mm

Trim Plate
Length: 170 mm
Width: 170 mm
Depth: 6.25 mm
Specification
Millivolt Compatible No
Permanent Hold Yes
Stages (Conventional) 2 Heat, 2 Cool
Stages (Heat Pump) 4 Heat, 2 Cool
Touchscreen Yes
WiFi Capability Yes
Temporary Hold Yes
Remote Sensing Capability Yes
Power Method Hardwire/24Vac
Key Pad Lockout Yes
Humidification Controls Yes
Filter Indicator Yes
Battery Backup No
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 5
Exterior Dimensions (D) (inches) 3.000000
Exterior Dimensions (W) (inches) 5.000000
Exterior Dimensions (H) (inches) 5.000000
Shipping Weight (lbs) 5.000000
