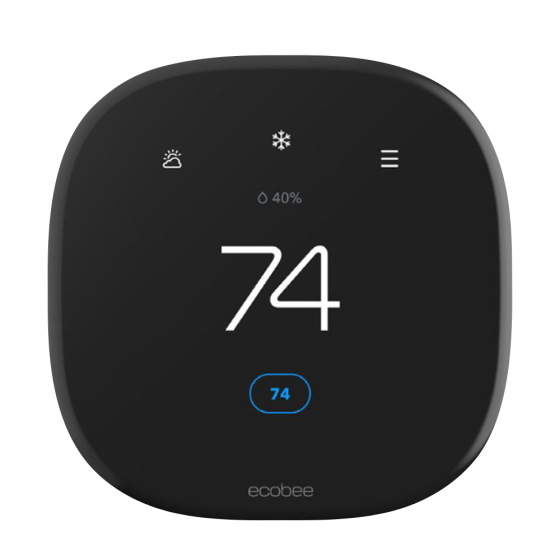

ecobee Smart Thermostat Enhanced with Wi-Fi, 2H/2C (3H/2C HP), 24Vac

OVERVIEW

ecobee Smart Thermostat Enhanced learns your temperature preferences and your schedule, so your home is just the way you like it. Automatically lowers the temperature when you’re sleeping to keep you cool and comfortable. Pre-cools or pre-heats your home before you arrive, so it’s comfortable the moment you walk in. Works with available SmartSensors to detect which rooms are in use and adjusts the temperature accordingly.

SPECIFICATIONS

Display
4 in. full-color LCD touchscreen
540 x 540 pixel display

Dimensions
Thermostat
Height: 103.89 mm (4.09 in.)
Width: 103.89 mm (4.09 in.)
Depth: 23.88 mm (0.94 in.)

Trim plate
Height: 143.5 mm (5.65 in.)
Width: 159.9 mm (6.29 in.)
Depth: 7.71 mm (0.3 in.)

Colors
Black front, white backing

Thermostat sensors
Temperature
Humidity
Occupancy (Radar)
Proximity (Radar)

Compatibility
Works with most 24VAC HVAC equipment, including conventional furnaces and air conditioners (2H/2C), heat pumps (2H/2C + 1 stage AUX heat), boilers, and PTACs or fan coil units with up to 3 fan speeds. 1 wire accessory support for humidifiers, dehumidifiers, and ventilators (HRV/ERV).

HVAC accessory support
Control a one-wire HVAC accessory device like a humidifier, dehumidifier, or ventilator. Note: Self-powered accessories will require an additional 24V isolation relay.

Wire Terminals
R, G, Y1,Y2,W2/OB,PEK+,C, and W1

Connectivity & security
Dual-band Wi-Fi: 802.11 b/g/n @ 2.4GHz, 802.11 a/n/ac @ 5GHz
Bluetooth 5.0
WPA, WPA2, WPA3 encryption methods
DHCP (dynamic) or static IP addressing
168-bit SSL encryption
915MHz radio

Works with
Apple HomeKit, Amazon Alexa, Samsung SmartThings, IFTTT, and more.

Bandwidth
15-20 MB/month (dependent on Alexa Voice Service usage)

Power consumption
Up to 3.5 VA

Powering methods
Wired 24VAC through terminals C and Rc.
Power Extender Kit enables you to reliably power your thermostat without having to run a fifth wire.

Sustainability
Recycled packaging
Mercury-free
Arsenic-free
PVC-free
ROHS compliant

Temperature range
Desired Temperature: 45° to 92°F (7° to 33°C)
Display: 40° to 100°F (5° to 37°C)
Sensitivity: +/− 1°F (+/− 0.5°C)
Operating: 14° to 122°F (-10° to 50°C)

Humidity range
Display: 20% to 90%
Sensitivity: +/− 5%
Operating: 5% to 95% RH (non-condensing)

Storage
−31° to 113°F (−35° to 45°C)
5% to 95% RH (non condensing)

Warranty
3-year limited warranty

Languages
English

What's in the box
Smart Thermostat Enhanced
Thermostat mounting plate
Quick-start guide
Wire labels
Screws and drywall anchors
