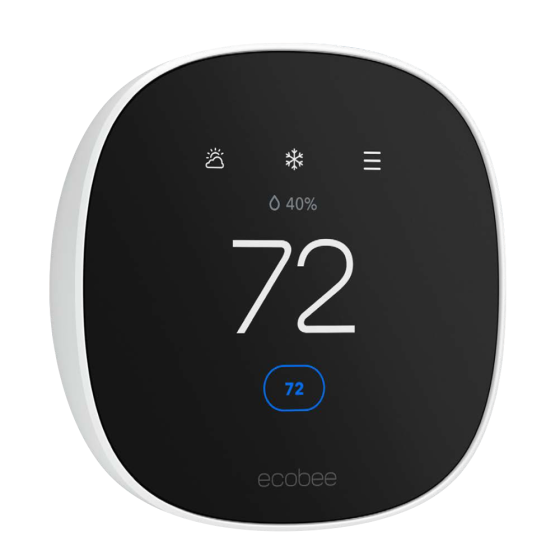

ecobee Smart Thermostat Lite Pro 2H/2C (4H/2C HP) 24Vac

FEATURES

Meet the all-new Smart Thermostat Lite. Made for simplicity with input from contractors, it's easy to install and use, hardwired for reliability, built to last, and designed to save your customers up to 23% (Compared to a hold of 72°F/22°C. ) on their heating and cooling costs. Best of all, it's exclusive to Pros.

Hardwired – Batteries not required
Avoid call backs with Smart Thermostat Lite—it’s hardwired and doesn’t need batteries, reducing the risk of product failures.

Works with most HVAC systems
Smart Thermostat Lite is easy to install and works with most HVAC systems up to 4H/2C, radiant heating, multistage, and dual-fuel.

Setup designed for Pros
With Pro First Run Setup, configuring Smart Thermostat Lite is simple, ensuring customers optimize their HVAC systems quickly.

Full accessory control
Easily support and control one-wire HVAC accessory devices like a humidifier, dehumidifier, or ventilator.

Industry-leading warranty
Add peace of mind with Smart Thermostat Lite. That means an extended 5-year warranty when installed by you, a professional.

Adjusts for savings and comfort
Customers can customize their routine through schedule and comfort settings. Whether home or away it automatically adjusts to save energy and optimize comfort.

Control anytime, anywhere
Easily control Smart Thermostat Lite on the beautifully designed touchscreen or through an Android or iOS device by downloading the top-rated ecobee app.

ENERGY STAR® approved
Get top-of-the-line energy savings with ENERGY STAR® certified Smart Thermostats. In 2024, ecobee was named ENERGY STAR® Partner of the Year. (The fourth year in a row!)

Works with popular smart home systems
Conveniently pairs with Apple HomeKit, Google Assistant, and Alexa.

SPECIFICATIONS

Compatibility

• Works with most 24 VAC HVAC equipment:

• Gas, oil, electric, dual fuel, forced air

• Conventional (2H/2C)

• Heat Pump(4H/2C)

• Boilers

• PTACs or fan coil units with up to

• 3 fan speeds

HVAC accessory support

• Control a one-wire HVAC accessory device like a humidifier, dehumidifier, or ventilator. (HRV/ERV) Note: Self-powered accessories will require an additional 24V isolation relay.

Wire Terminals

• C, Y2, Rc, W2, G/PEK, ACC, Rh, Y1, OB, W1

Connectivity and security

• Wi-Fi: 802.11 b/g/n/ax @ 2.4GHz

• Bluetooth 5.0, A2DP, LE

• WPA, WPA2, WPA3 encryption methods

• DHCP (dynamic) or static IP addressing

• 168-bit SSL encryption

• 915MHz radio

Power consumption

• 3 VA

Bandwidth

• 5MB/Mo

Powering method

• Hardwired. Power Extender Kit enables you to reliably power your thermostat if a C-wire is not available. PEK sold separately.

Display

• 2.8” full-color touch screen LCD

• 240 x 320 pixel display

Thermostat sensors

• Temperature

• Humidity

Sustainability

• Energy Star Certified

• Fully recyclable or compostable packaging

• Mercury-free

• Arsenic-free

• PVC-free

• RoHS compliant

Features

• Multi-speed Fan support

• Control through iOS & Android apps

• and Apple Watch

Temperature range

• Desired: 45°F to 120°F (7°C to 49°C)

• Display: 32°F to 120°F (0°C to 49°C)

• Sensitivity: +/- 1°F (+/- 0.5°C)

• Operating: 14°F to 122°F (-10°C to 50°C)

Humidity range

• Display: 20% to 90% RH

• Sensitivity: +/- 5% RH

• Operating: 5% to 95% RH (non-condensing)

Storage

• Temperature: -4°F to 113°F (-20°C to 45°C)

• Humidity: 5% to 95% RH (non-condensing)

Warranty (Pro install only)

• Industry-leading 5-year warranty.

Product dimensions

• Smart Thermostat

○ Length: 92 mm (3.62 in)

○ Width: 92 mm (3.62 in)

○ Depth: 23mm (0.91 in)

• Trim Plate

○ Length: 112mm (4.42 in)

○ Width: 170mm (6.70 in)

○ Height: 8mm (0.32 in)

INCLUDES

• ecobee Smart Thermostat Lite

• Backplate

• Screws & drywall plugs

• Trim plate/adaptor plate

• Quick start guide
