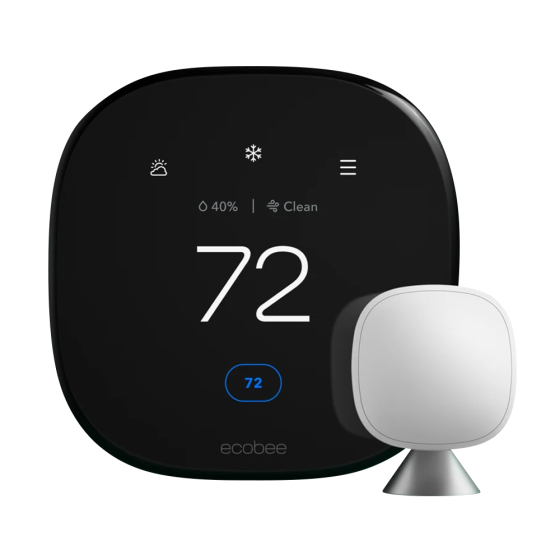

ecobee Smart Thermostat Premium with Wi-Fi, 2H/2C (4H/2C HP), 24Vac (Builders)

FEATURES

Simple
Comes with everything needed for a quick and easy installation, including screws and drywall plugs, backplate, PEK, wiring diagrams and a quick start guide.

Reliable
Doesn’t need charging, or other power sources.

Built-in air quality monitor
Built-in air quality monitor that measures VOC/eCO2, alerts homeowner when air quality is poor, and provides simple steps on how to improve it.

Seamless integrations
Works with the most popular smart home systems and is the only smart thermostat that doubles as a security hub to monitor unexpected activity. (ecobee Smart Security subscription required)

Automatic savings
Automatically helps homeowners save up to 26% on heating and cooling costs, while keeping them comfortable with included room sensor. (Compared to a hold of 72°F/22°C)

Healthier home
Built-in air quality monitor that alerts you when air quality is poor and can send reminders when it’s time to change the furnace’s air filter.

Premium look and ease-of-use
Redesigned with premium materials and advanced engineering. Thicker glass, intuitive usability, a larger screen, new metal body, and our most advanced sensors ever.

Multi-talented monitoring
Built-in smoke alarm detection (ecobee Smart Security subscription required), presence detection to alert of issues when homeowner is not home, and freeze detection to notify of sudden temperature drops.

Made for the planet
Helps lower homeowners’ carbon footprint by automatically conserving energy. Designed with quality materials to last for over 10 years.

SPECIFICATIONS

Compatibility
Works with most 24
VAC HVAC equipment:
Gas, oil, electric, dual fuel, forced air
Conventional (2H/2C)
Heat Pumps (4H/2C) 2 stage heat pump +
2 stage AUX / 2 stage cool
Boilers
PTACs or fan coil units with up to
3 fan speeds
One 1-wire accessory or one 2-wire accessory support for humidifiers, dehumidifiers, and ventilators (HRV/ERV)

Wire terminals
RC, RH, G, Y1, Y2, C, W1, W2, O/B, ACC+, ACC-, PEK+

Connectivity and security
Dual-band Wi-Fi: 802.11 b/g/n @ 2.4GHz,
802.11 a/n/ac @ 5GHz
Bluetooth 5.0, A2DP, LE
WPA, WPA2, WPA3 encryption methods
DHCP (dynamic) or static IP addressing
168-bit SSL encryption
915MHz radio

Power consumption
4 VA

Bandwidth
15MB/Mo
*Depending on Alexa usage

Powering method
Hardwired. Power Extender Kit enables you to reliably power your thermostat if a C-wire is not available.

Display
4” full-color touch screen LCD
540 x 540 pixel display

Thermostat sensors
Temperature
Humidity
Proximity
Occupancy
Air Quality (VOC & eCO2)

Sustainability
Energy Star Certified
Fully recyclable or compostable packaging
Tapioca insert packaging
Mercury-free
Arsenic-free
PVC-free
RoHS compliant

Features
Radar occupancy & proximity sensing
Air Quality Monitor

Multi-Speed Fan support
Control through iOS & Android apps and Apple Watch
Alexa Built-In
Siri Enabled (Apple home hub required)

Voice and audio
Built-in microphones
Built-in speaker
Far-field voice recognition

Temperature range
Desired: 45°F to 92°F (7°C to 33°C)
Display: 40°F to 100°F (5°C to 37°C)
Sensitivity: +/- 1°F (+/- 0.5°C)
Operating: 14°F to 122°F (-10°C to 50°C)

Humidity range
Display: 20% to 90% RH
Sensitivity: +/- 5% RH
Operating: 5% to 95% RH (non-condensing)

Storage
Temperature: -31°F to 113°F (-35°C to 45°C)
Humidity: 5% to 95% RH (non-condensing)

Warranty (Pro install only)
Industry-leading 5-year warranty.

Product dimensions
Smart Thermostat
Length: 103.89 mm (4.09 in)
Width: 103.89 mm (4.09 in)
Depth: 25.9 mm (1.02 in)
