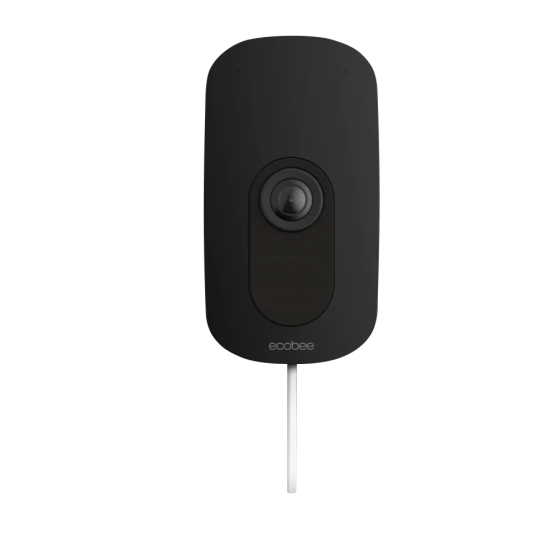

ecobee SmartCamera with Voice Control

FEATURES & BENEFITS

Dimensions & weight
Camera
Camera Height: 107 mm (4.2 in.)
Width: 57.5 mm (2.26 in.)
Depth: 44 mm (1.7 in.)

Camera on stand
Height: 138 mm (5.4 in.)
Width: 57.5 mm (2.26 in.)
Depth: 44 mm (1.7 in.)

Camera on wall mount
Height: 107 mm (4.2 in.)
Width: 57.5 mm (2.26 in.)
Depth: 75.3 mm (2.96 in.)
Camera weight: 0.18 kg (0.4 lb.)
Camera on stand/wall mount: 0.28 kg (0.62 lb.)

Colors
Black front, white sides and back

Operating environment
For indoor use only

Power
AC power adapter with 10 ft (3 m) white indoor power cord

Image sensor
5 megapixels

Lens
f/2.2 with digital zoom

Field of view
180° diagonal, 170° horizontal, 115° vertical

Video
1080p (1920X1080) H.264 encoding @ 30 frames per second

Night vision
3 high-powered infrared LEDs (850nm) with mechanical ICR filter

Processor & memory
Octa-core 2GHz
1GB LPDDR4 RAM
4GB Flash (eMMC)

Voice, audio & lights
Amazon Alexa Built-in
Two-way audio with echo cancellation
2 far-field microphones
5 RGB LEDs

Works with
Apple HomeKit, Amazon Alexa, iOS, Android

Connectivity & security
Dual-band Wi-Fi: 802.11 b/g/n @ 2.4GHz, 802.11 a/n/ac @ 5GHz
Bluetooth 5.0
WEP 64, WEP 128, WPA, and WPA2 encryption methods
DHCP (dynamic) or static IP addressing
168-bit SSL encryption
915MHz radio

Input voltage
100–240V, 50/60Hz

Power supply
12V @ 1A

Operating temperature & humidity
Temperature: 32° to 104°F (0° to 40°C)
Humidity: 85% RH (non-condensing)

Storage temperature & humidity
Temperature: −4° to 140°F (−20° to 60°C)
Humidity: 10% to 95% RH (non-condensing)

Warranty
3-year limited warranty

Languages
English

Regulatory certifications
ROHS compliant
FCC certified
IC certified

What’s in the box
SmartCamera with voice control
Dual-mount stand
Power supply
Quick-start guide
Mounting guide
Screw and drywall anchor
