Carrier® Vertical Economizer with Barometric Relief

FEATURES

Economizers are recommended for use with only commercial packaged products that have ECM motors. The Economizer system utilizes the latest technology available for integrating the use of free cooling with mechanical cooling for rooftop units. The solid-state control system optimizes energy consumption, zone comfort, and equipment cycling by operating the compressors when the outdoor-air temperature is too warm, integrating the compressor with outdoor air when free cooling is available, and locking out the compressor when outdoor-air temperature is too cold. Demand ventilation is supported.

The Economizer system utilizes gear-drive technology with a direct-mount spring return actuator that will close upon loss of power. The Economizer system comes standard with an outdoor air temperature sensor, a supply air temperature sensor, and low temperature compressor lockout switch. Indoor enthalpy sensors, outdoor enthalpy sensors and CO2 sensors are available for field installation.

Barometric relief dampers provide natural building pressurization control. Barometric relief dampers are built into the design and are standard.

SPECIFICATIONS

1 Inch Filters
• 1 - 16 x 24 (406.4 x 609.6mm)
• 1 - 18 x 24 (457.2 x 609.6mm)

2 Inch Filters
• 2 - 10 x 24 (254.0 x 609.6mm)
• 1 - 14 x 24 (355.6 x 609.6mm

Unscrew two brackets on the top filter rack to fit 2-in. (50.8mm) filters.
Place 14 x 24 x 2 in. (254.0 x 609.6 x 50.8 mm) filter at the right side of the coil and 10 x 24 x 2 in. (254.0 x 609.6 x 50.8mm) filters at the left side in this order.

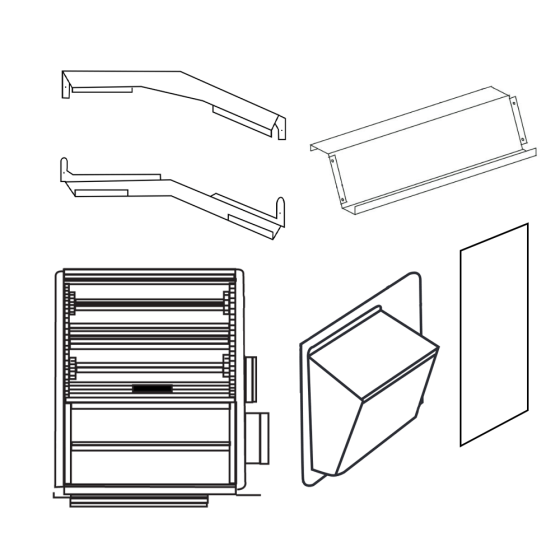

INCLUDES

• Hood Top and Sides
• Hood Divider
• Aluminum Filter
• 11 #10 Self-Drilling Screw w/ Washers
• 4 #10 x 1/2” Blunt End Screws
• #10 x 1” Self Drilling Screw
• Economizer Assembly
• Supply Air Temperature Sensor w/ Bracket
• 1” (25.4 mm) Throw Away Filters
• Top Filter Rack
• Bottom Filter Rack
• Replacement Return Chamber Panel
• Compressor Cover Panel
• Extension Harness w/ Plug
• Wiring Dia. Labels
