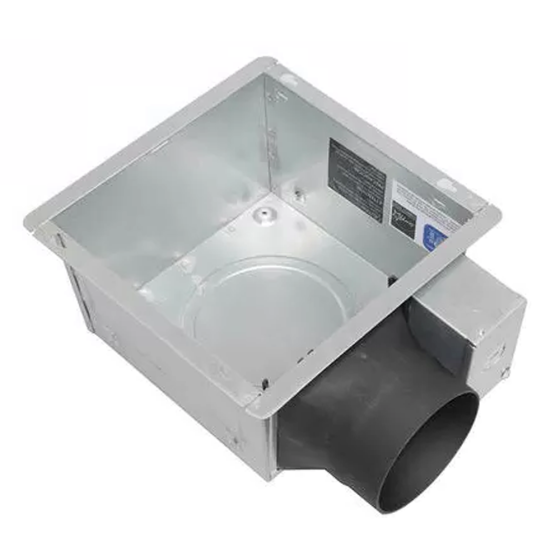

Panasonic EcoVent™ Ventilation Fan Housing 4 in. Round Duct, 7-7/8 in. x 7-7/8 in. x 4-3/4 in.
Item
FV-07VBA1A
APPLICATIONS
The Panasonic EcoVent® FV-07VBA1A Ventilation Fan Housing is used with the Panasonic EcoVent® FV-07VBB1 Motor/Blade/Grille Assembly.
FEATURES & BENEFITS
Housing
• Galvanized steel body.
• Small, 4-3/4" housing depth
• 4" round diameter duct.
• Built in backdraft damper.
• Built in metal flange provides blocking for penetrations through drywall as an Air Barrier, and assists with the decrease in leakage in the Building Envelope during blower door testing.
• Simply mounts directly to the joist using 4 screws between top and side panels.
Grille
• Small, attractive design using PP material.
• Attaches directly to housing with torsion springs.
• Grille Size (in sq.): 9-1/2"
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 9 | Exterior Dimensions (D) (inches) | 21.000000 | Exterior Dimensions (W) (inches) | 11.000000 | Exterior Dimensions (H) (inches) | 9.000000 | Shipping Weight (lbs) | 9.000000 |
