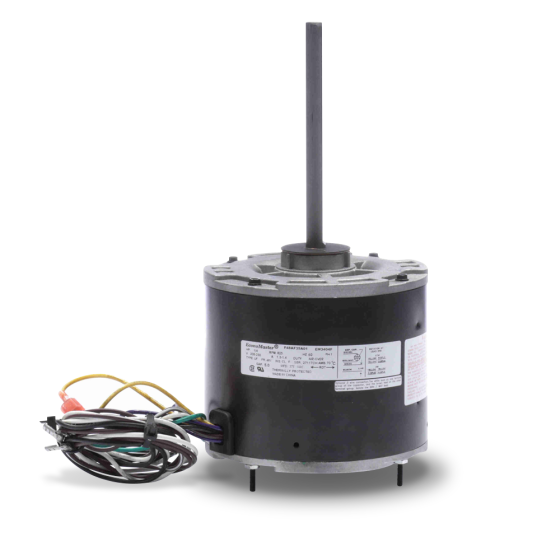

Century® EconoMaster® Condenser Fan Motor 1/4 HP, 825 RPM, 208/230Vac, 1.4A, 5µF/370Vac, 1 Speed, 70°C (PSC)
Item
EM3404F
PRODUCT DETAILS
• Thermally Protected
• 36" Leads
• Extended Studs Lead End, Mounting Holes in Shell, Belly Band
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/4
• RPM: 825
• Number of Speeds: 1
• Rotation: Reversible
• Voltage: 208/230Vac
• Amperage: 1.4
• Capacitor: 5µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 48Y
• Totally Enclosed, Air Over (TEAO) Enclosure
• Continuous Duty
• Insulation Class: F
• Ambient Temperature: 70 °C
• Shaft Size: 0.50 x 6.0
| Specification | |
|---|---|
| Ambient Temperature | 70 °C | Bearing Type | Ball | Motor Frame | 48Y | Motor HP | 1/4 | Motor Type | PSC | Mounting Type | Thru Bolt/Mounting Holes/Belly Band | Number of Speeds | 1 | RPM | 825 | Shaft Diameter | 0.50 |
| Electrical | |
|---|---|
| Amps | 1.4 | FLA | 1.4 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 20 | Exterior Dimensions (D) (inches) | 14.000000 | Exterior Dimensions (W) (inches) | 7.000000 | Exterior Dimensions (H) (inches) | 7.000000 | Shipping Weight (lbs) | 20.000000 |
