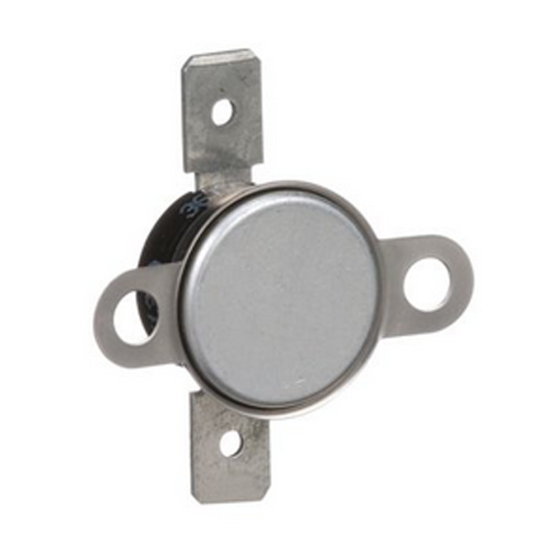

Fan Control Limit Switch, Manual Reset
Item
3L02-180
FEATURES & BENEFITS
• Loose ring, stainless steel mounting brackets
• Mounting holes match standard ?” snap discs
• Aluminum disc cup
• Last three numbers indicate cut-in temperatures on fan controls and cut-out temperatures on limits
• Typical Applications: Snap Disc Limit - Manual Reset SPST
• Fixed Temperature Settings Cut-In: Manual Reset
• Switch Action: Open on Rise
• Therm-O-Disc Type: 60T15
• Therm-O-Disc Style: 330536
• Agency: UL Recognized File #E19279, CSA Certified File Number LR77886/LR109556, VDE Lic. 118631
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 1.000000 | Exterior Dimensions (W) (inches) | 5.000000 | Exterior Dimensions (H) (inches) | 8.250000 | Shipping Weight (lbs) | 1.000000 |
